Fan: AC; blower; 115VAC; 120x120x37mm; 34m3/h; 48dBA; ball; 24AWG SUNON
Product Code: AB1123HBT

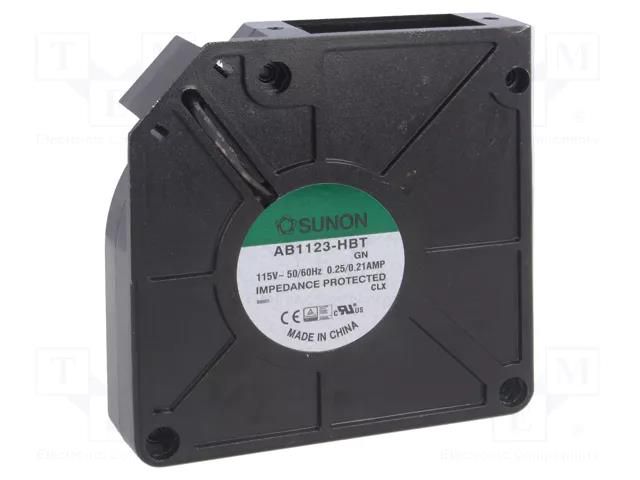

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: AC; blower; 115VAC; 120x120x37mm; 34m3/h; 48dBA; ball; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: AC; blower; 115VAC; 120x120x37mm; 34m3/h; 48dBA; ball; 24AWG
Useful information
Supplier parameters
Product code
AB1123HBT
Cable length
0.3m
Current and power consumption tolerance
±15%
Current rating
0.25A
Enclosure material
aluminium
Fan dimensions
120x120x37mm
Fan efficiency
34m<sup>3</sup>/h
Flammability rating
UL94V-0
Frequency
50Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
blower
Leads
connectors
Leads dimensions
2.8x0.3mm
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
48dBA
Operating temperature
-10...70°C
Power consumption
20W
Rotational rate/speed
2600 (±10%)rpm
Static pressure
8.12mm H<sub>2</sub>O
Supply voltage
115V AC
Type of fan
AC
Wire size
24AWG
Supplier's product code
AB1123HBT
Product ID
U-103499
Brand
SUNON
