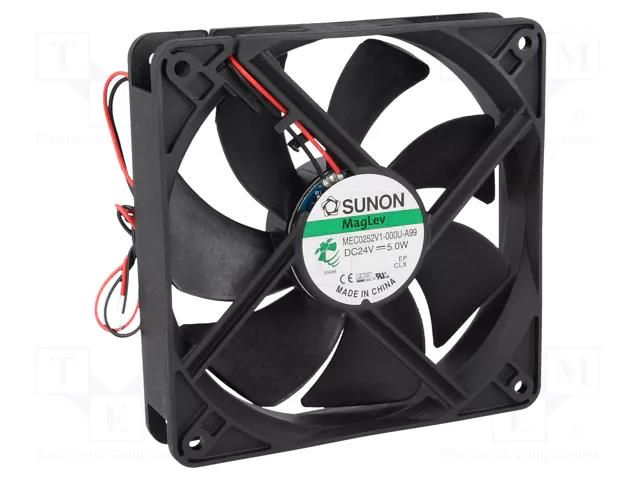

Fan: DC; axial; 24VDC; 120x120x25mm; 183.9m3/h; 44.5dBA; Vapo; 24AWG SUNON
Product Code: MEC0252V1-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 120x120x25mm; 183.9m3/h; 44.5dBA; Vapo; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 120x120x25mm; 183.9m3/h; 44.5dBA; Vapo; 24AWG
Useful information
Supplier parameters
Brand
SUNON
Supplier's product code
MEC0252V1-A99
Product ID
U-255205
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.207A
Enclosure material
thermoplastic
Fan dimensions
120x120x25mm
Fan efficiency
183.9m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.33m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
44.5dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
5W
Rotational rate/speed
3100 (±10%)rpm
Static pressure
7.1mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Product code
MEC0252V1-A99
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
