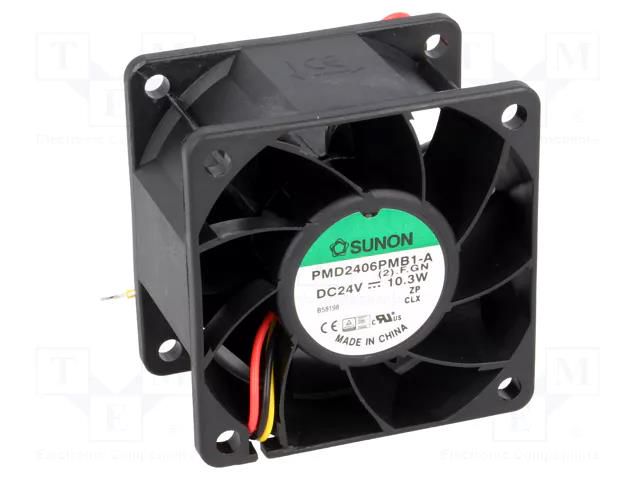

Fan: DC; axial; 24VDC; 60x60x38mm; 96m3/h; 56dBA; ball; Out: F type SUNON
Product Code: PMD2406PMB1AF
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 60x60x38mm; 96m3/h; 56dBA; ball; Out: F type SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x38mm; 96m3/h; 56dBA; ball; Out: F type
Useful information
Supplier parameters
Product code
PMD2406PMB1AF
Brand
SUNON
Supplier's product code
PMD2406PMB1AF
Product ID
U-291747
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.43A
Enclosure material
thermoplastic
Fan dimensions
60x60x38mm
Fan efficiency
96m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
56dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
10.3W
Rotational rate/speed
8000 (±10%)rpm
Signal output
F type
Static pressure
23.36mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
