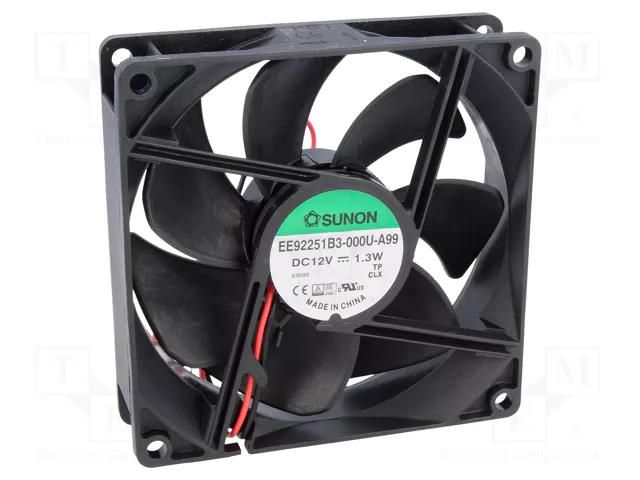

Fan: DC; axial; 12VDC; 92x92x25mm; 67.15m3/h; 28dBA; ball; 2.54mmH2O SUNON
Product Code: EE92251B3-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 92x92x25mm; 67.15m3/h; 28dBA; ball; 2.54mmH2O SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 92x92x25mm; 67.15m3/h; 28dBA; ball; 2.54mmH2O
Useful information
Supplier parameters
Product code
EE92251B3-A99
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
0.091A
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
67.15m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
28dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.3W
Rotational rate/speed
2400 (±10%)rpm
Static pressure
2.54mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
EE92251B3-A99
Product ID
U-176654
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
