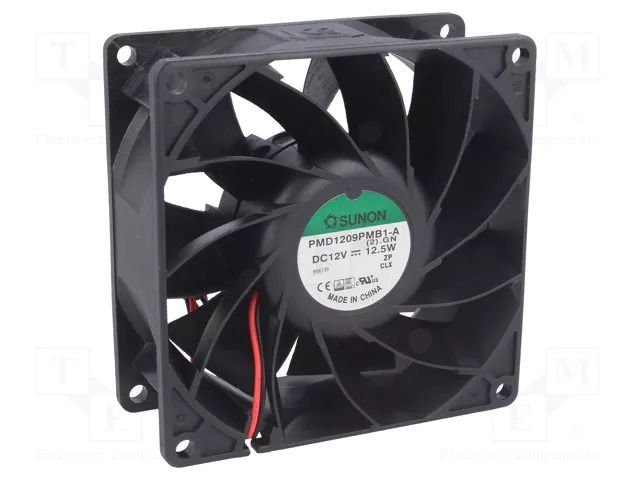

Fan: DC; axial; 12VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; ball; 28AWG SUNON
Product Code: PMD1209PMB1A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; ball; 28AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 92x92x38mm; 204.21m3/h; 57.6dBA; ball; 28AWG
Useful information
Supplier parameters
Product code
PMD1209PMB1A
Brand
SUNON
Supplier's product code
PMD1209PMB1A
Product ID
U-291733
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
1A
Enclosure material
thermoplastic
Fan dimensions
92x92x38mm
Fan efficiency
204.21m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
57.6dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
12.5W
Rotational rate/speed
4900 (±10%)rpm
Static pressure
18.02mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
28AWG
