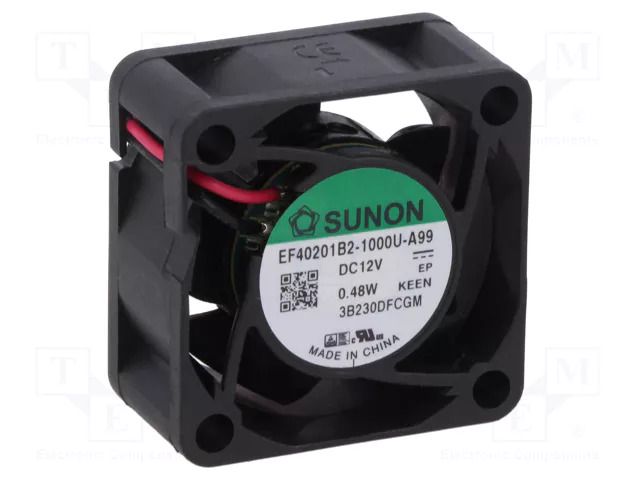

Fan: DC; axial; 12VDC; 40x40x20mm; 13.08m3/h; 27.5dBA; ball; 26AWG SUNON
Product Code: EF40201B2-A99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 40x40x20mm; 13.08m3/h; 27.5dBA; ball; 26AWG SUNON
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x20mm; 13.08m3/h; 27.5dBA; ball; 26AWG
Supplier parameters
Product code
EF40201B2-A99-A
Additional functions
Autorestart
Current rating
54mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
13.08m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
27.5dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
0.65W
Rotational rate/speed
6200 (±15%)rpm
Static pressure
3.05mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Supplier's product code
EF40201B2-A99-A
Product ID
U-3032506
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
