Fan: DC; axial; 12VDC; 40x40x20mm; 15.2m3/h; 24.5dBA; ball; 7200rpm SUNON
Product Code: EF40201B1-A99-A

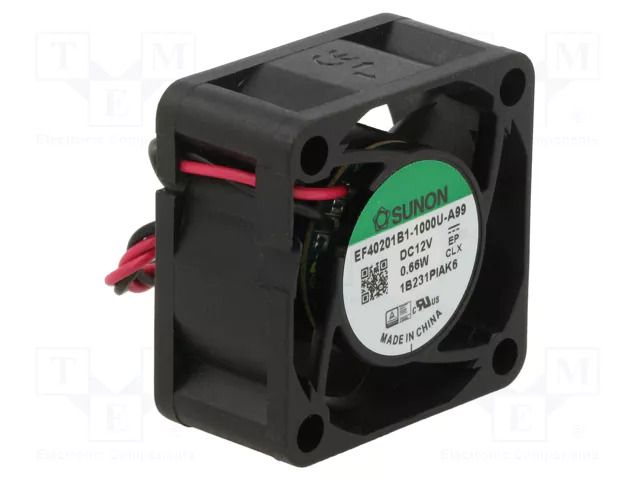

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 40x40x20mm; 15.2m3/h; 24.5dBA; ball; 7200rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 40x40x20mm; 15.2m3/h; 24.5dBA; ball; 7200rpm
Useful information
Supplier parameters
Product code
EF40201B1-A99-A
Supplier's product code
EF40201B1-A99-A
Product ID
U-2961096
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
55mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
15.2m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.305m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
24.5dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
0.66W
Rotational rate/speed
7200rpm
Supply voltage
12V DC
Type of fan
DC
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
