Fan: DC; axial; 12VDC; 80x80x38mm; 63.4dBA; ball; Out: PWM; 11200rpm SUNON
Product Code: PF80381B1-S9H

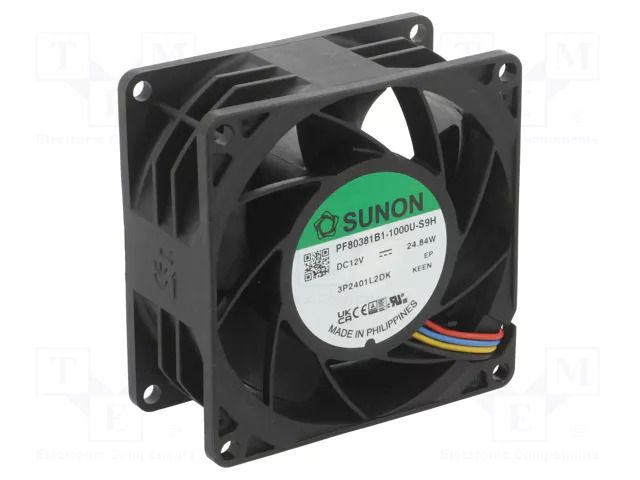

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 80x80x38mm; 63.4dBA; ball; Out: PWM; 11200rpm SUNON
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 80x80x38mm; 63.4dBA; ball; Out: PWM; 11200rpm
Supplier parameters
Product code
PF80381B1-S9H
Product ID
U-3916689
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
1.8A
Enclosure material
thermoplastic
Fan dimensions
80x80x38mm
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.31m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
63.4dBA
Operating temperature
-10...70°C
Operating voltage
10.2...13.8V DC
Power consumption
21.6W
Rotational rate/speed
11200rpm
Signal output
PWM
Supply voltage
12V DC
Type of fan
DC
Brand
SUNON
Supplier's product code
PF80381B1-S9H
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
