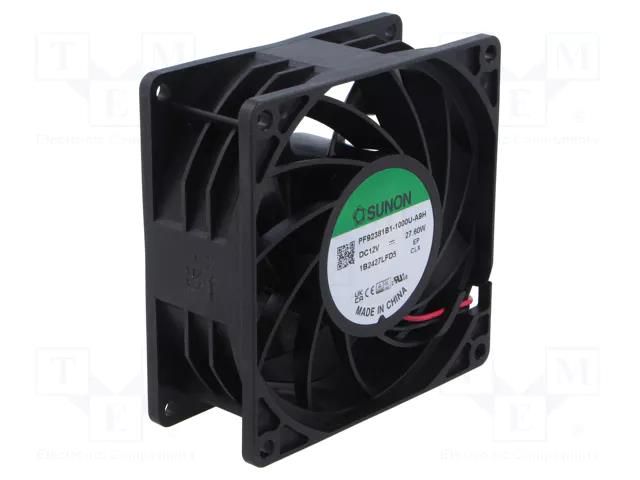

Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; ball; 24AWG SUNON
Product Code: PF92381B1-A9H
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; ball; 24AWG SUNON
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 92x92x38mm; 234.63m3/h; 68.5dBA; ball; 24AWG
Supplier parameters
Product code
PF92381B1-A9H
Supplier's product code
PF92381B1-A9H
Product ID
U-3032686
Additional functions
autorestart
Current rating
2128mA
Enclosure material
thermoplastic
Fan dimensions
92x92x38mm
Fan efficiency
234.63m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
68.5dBA
Operating temperature
-10...70°C
Operating voltage
8...13.2V DC
Power consumption
25.54W
Rotational rate/speed
9300 (±10%)rpm
Static pressure
49.53mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
