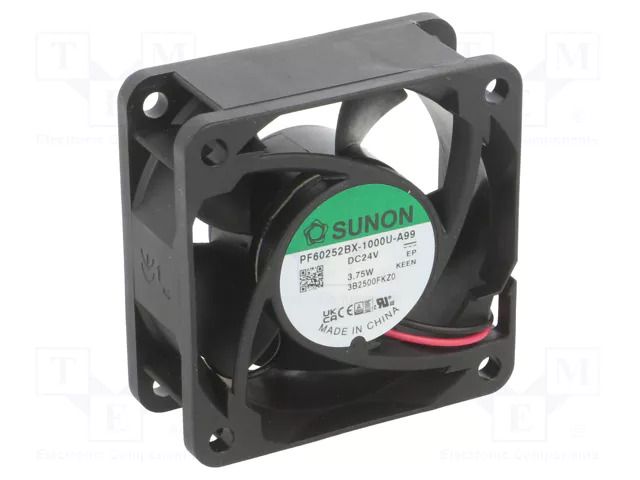

Fan: DC; axial; 24VDC; 60x60x25mm; 68m3/h; 46dBA; ball; 8300rpm SUNON
Product Code: PF60252BX-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 60x60x25mm; 68m3/h; 46dBA; ball; 8300rpm SUNON
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x25mm; 68m3/h; 46dBA; ball; 8300rpm
Supplier parameters
Product code
PF60252BX-A99
Brand
SUNON
Supplier's product code
PF60252BX-A99
Product ID
U-4371371
Additional functions
autorestart
Current rating
134mA
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
68m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
46dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
3.22W
Rotational rate/speed
8300rpm
Supply voltage
24V DC
Type of fan
DC
