Fan: DC; axial; 24VDC; 92x92x25mm; 58.45m3/h; 37.9dBA; ball; 24AWG SUNON
Product Code: EF92252B2-A99-A

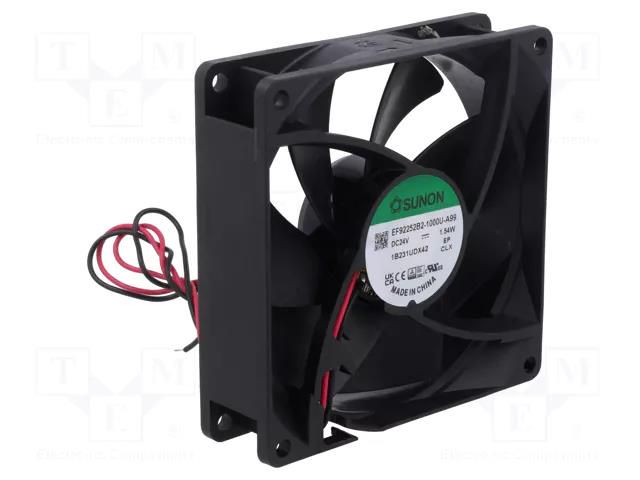

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 92x92x25mm; 58.45m3/h; 37.9dBA; ball; 24AWG SUNON
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 92x92x25mm; 58.45m3/h; 37.9dBA; ball; 24AWG
Supplier parameters
Product code
EF92252B2-A99-A
Supplier's product code
EF92252B2-A99-A
Product ID
U-3032513
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
54mA
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
58.45m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
3.05m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
37.9dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.3W
Rotational rate/speed
2700 (±10%)rpm
Static pressure
2.79mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
