Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; 3000rpm SUNON
Product Code: EF92252B1-A99

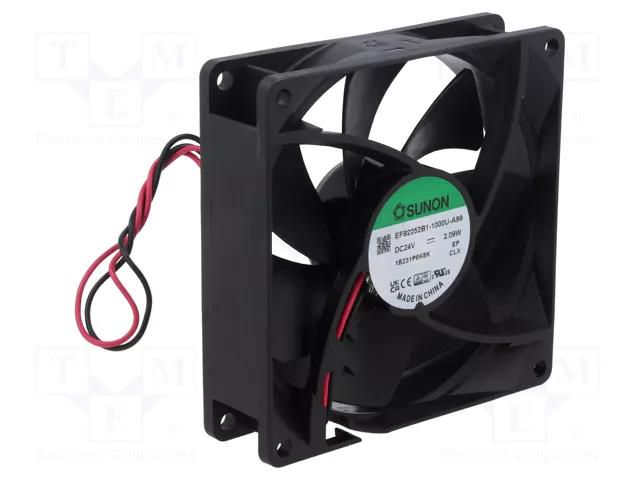

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; 3000rpm SUNON
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 92x92x25mm; 82m3/h; 34dBA; ball; 3000rpm
Supplier parameters
Product code
EF92252B1-A99
Brand
SUNON
Supplier's product code
EF92252B1-A99
Product ID
U-2968149
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
63mA
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
82m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
34dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
2.09W
Rotational rate/speed
3000rpm
Supply voltage
24V DC
Type of fan
DC
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
