Fan: DC; axial; 12VDC; 92x92x25mm; 40.7dBA; ball; Out: R type SUNON
Product Code: EF92251B1-F99

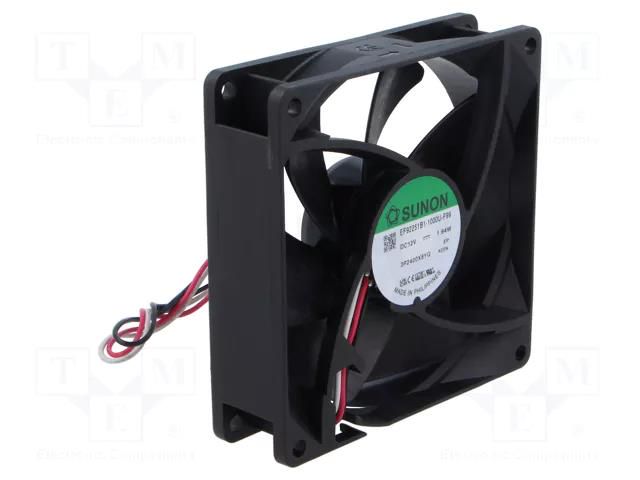

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Fan: DC; axial; 12VDC; 92x92x25mm; 40.7dBA; ball; Out: R type SUNON
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 92x92x25mm; 40.7dBA; ball; Out: R type
Supplier parameters
Product code
EF92251B1-F99
Brand
SUNON
Supplier's product code
EF92251B1-F99
Product ID
U-3916346
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.125A
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.305m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
40.7dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
1.5W
Rotational rate/speed
3000rpm
Signal output
R type
Supply voltage
12V DC
Type of fan
DC
