Product description

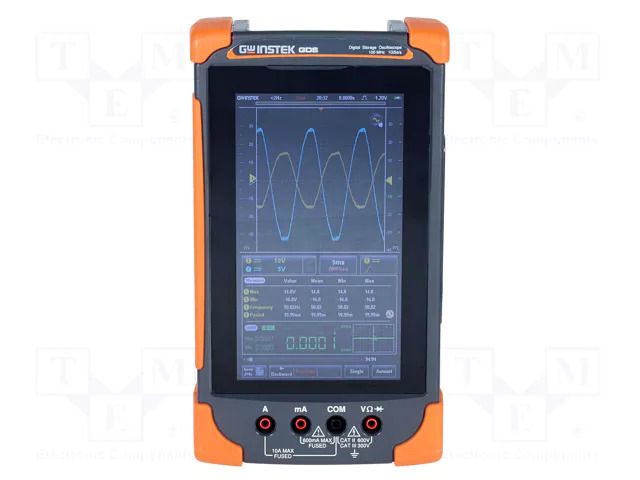

Handheld oscilloscope; 100MHz; LCD; Ch: 2; 1Gsps (in real time) GW INSTEK
Useful information
Specifications
Supplier product description
Handheld oscilloscope; 100MHz; LCD; Ch: 2; 1Gsps (in real time)
Useful information
Supplier parameters
Brand
GW INSTEK
Supplier's product code
GDS-310
Product ID
U-195497
AC current measuring accuracy
±(1.5% + 15 digit)@50mA
AC current measuring range
10A
AC voltage measuring accuracy
±(1.5% + 15 digit)
AC voltage measuring range
50mV
Band
100MHz
Connectors for the country
Europe
DC current measuring range
10A
DC voltage measuring range
1kV
Dimensions
240x136x60mm
Display resolution
480x800
Input impedance
1MΩ
Input sensitivity
2mV/div
Kind of display used
LCD
Manufacturer
GW INSTEK
Max. input voltage
300V
Measurement
AC voltage
Measuring instrument features
HOLD function
Memory record length
5Mpts/ch
Number of channels
2
Resistance measuring accuracy
±(0.3%+3 digit)@(500Ω)
Resistance measuring range
500Ω
Rise time
≤3.5ns
Sampling
1Gsps (in real time)
Screen size
7"
Supply voltage
100...240V AC
Time base
5n...100s/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Product code
GDS-310
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
