Product description

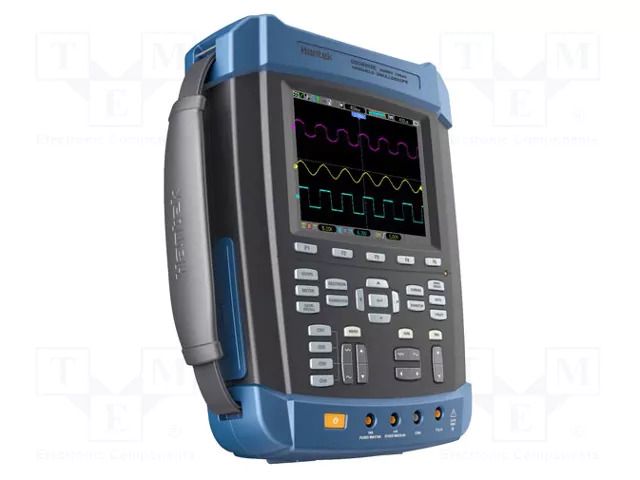

Handheld oscilloscope; 70MHz; 8bit; colour,LCD TFT 5,6"; Ch: 2 HANTEK
Useful information
Specifications
Supplier product description
Handheld oscilloscope; 70MHz; 8bit; colour,LCD TFT 5,6"; Ch: 2
Useful information
Supplier parameters
Product code
DSO8072E
Brand
HANTEK
Supplier's product code
DSO8072E
Product ID
U-170486
Band
70MHz
Connectors for the country
Europe
Continuity test
acoustic indication
Dimensions
260x220x75mm
Display resolution
640x480
Input impedance
1MΩ/20pF
Input sensitivity
2mV/div
Interface
USB
Kind of display used
colour
Manufacturer
HANTEK
Manufacturer series
DSO8000E
Max. input voltage
30V
Measurement
AC voltage
Measurement memory
1000
Measuring instrument features
X-Y operation mode
Memory record length
2Mpts
Number of channels
2
Power supply
rechargeable battery Li-Ion x1
Rise time
≤5ns
Sampling
1Gsps
Standard equipment
test leads
Supply voltage
100...240V AC
Test
diodes
Time base
4n...2ks/div
Type of oscilloscope
handheld oscilloscope
Trigger
video signal
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
