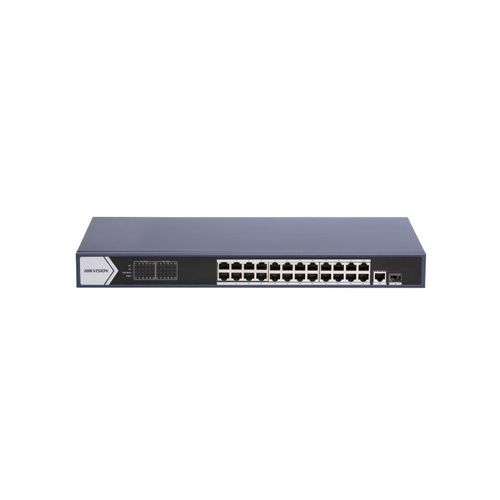

Hikvision 26 port 24 PoE port switch DS-3E0526P-E(B)
Product Code: SWITCHDS3E0526PEB
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Hikvision 26 port 24 PoE port switch DS-3E0526P-E(B)
Specifications
Supplier product description
- 24 x 10/100/1000 Mbps ethernet ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- PoE ports: 1 to 24
- 6KV Surge Protection
- Approval
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- General
- Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
- Gross Weight3.74 kg (8.25 lb)
- Installation ModeDesk-Mounted,Rack (equipped with mounting ears);
- Max. Power Consumption400 W
- Net Weight2.88 kg (6.35 lb)
- Operating Humidity5% to 95% (no condensation)
- Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
- Power Consumption in Idle30 W
- Power Supply100~240 VAC, 50/60 Hz, Max. 6.5 A
- Relative Humidity5% to 95% (no condensation)
- ShellMetal material
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Surge Protection6 KV
- Network Parameters
- Internal Cache4.1 Mbits
- MAC Address Table8 K
- Packet Forwarding Rate38.69 Mpps
- Ports24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port
- Switching Capacity52 Gbps
- PoE Power Supply
- Max. Port Power30 W
- PoE PortPoE: Ports 1 to 24
- PoE Power Budget370 W
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE StandardIEEE 802.3af,IEEE 802.3at
Supplier parameters
Category
Swit
Product ID
U-4759023
Product code
SWITCHDS3E0526PEB
Brand
Hikvision
Supplier's product code
SWITCHDS3E0526PEB
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
