Hikvision DS-KD8003Y-IME2/NS
Product Code: PSKKD8003YIME2NS

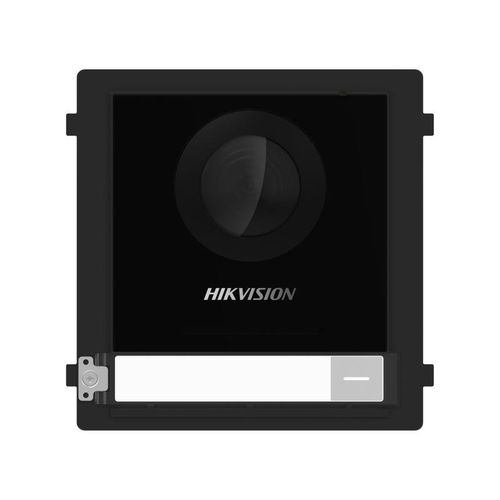

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Hikvision DS-KD8003Y-IME2/NS
Specifications
Supplier product description
- Type: Camera Passage System
- Model: Hikvision DS-KD8003Y-IME2
- Resolution: 2 MP
- Lens: Fisheye
- Viewing angle: 146°
- Connection: 2-wire
- Infrared distance: 3 m
- Sound: Audio in/out
- Power supply: PoE
- Alarm inputs: 4 x alarm
- Water resistance: IP65
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 MB
- RAM256 MB
- CPUEmbedded Processor
- Display parameters
- Screen sizeNA
- Operation methodNA
- TypeNA
- ResolutionNA
- Video parameters
- Supplement lightLow illumination, IR supplement lights
- Video standardH.264
- Lens1
- FOVHorizontal: 146°, Vertical: 82°
- WDR
Support
- Resolution2 MP
- Audio parameters
- Audio input
Built-in omnidirectional microphone
- Audio compression standardG.711 U, G.711 A
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Fingerprint capacity/
- User capacity2000
- Face capacityNA
- Linked indoor station capacity500
- Event capacity/
- Sub door station capacity16
- Network parameters
- EthernetNA
- Communication protocolNA
- Wired networkNA
- Wi-FiNA
- BluetoothNA
- 3G/4GNA
- Device interfaces
- Alarm input4 (2 exit butttons and 2 door contacts by default)
- I/O input4
- TAMPER1
- I/O output2
- Exit button2 (2 for lock control)
- Door contact input2
- RS-4851 (1 for Hikvision's sub module communication)
- WiegandNA
- TF cardNA
- Alarm outputNA
- Lock control2 (2 relay, max to 30 VDC, 2 A)
- USBNA
- Power interface 12VDC power output（12 V, 500 mA Max.）
- Two-wire IP interfaceNA
- General
- Power supplyPowered by KAD704Y or KAD706Y series distributor
- Working temperature-40° C to 60° C (-40° F to 140° F)
- Working humidity10% to 90%
- Button0
- Protective levelIP65
- InstallationSurface mounting & flush mounting
- Dimensions(L × W × H)100 mm × 98 mm × 42 mm
- LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
- Indicator0
- Weight427.1 g
- Battery/
- Application environmentOutdoor
- Power consumption≤ 4 W
Supplier parameters
Category
Door stations
Product code
PSKKD8003YIME2NS
Brand
Hikvision
Supplier's product code
PSKKD8003YIME2NS
Product ID
U-4495164
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
