Hikvision DS-KV8213-WME1(C)/Flush
Product Code: PSKDSKV8213WME1CFLUSH

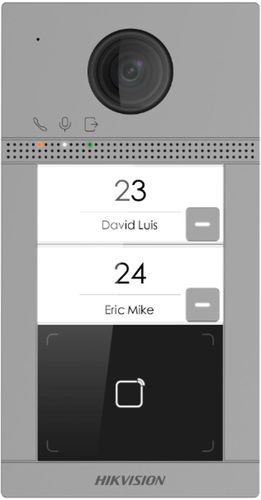

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Hikvision DS-KV8213-WME1(C)/Flush
Specifications
Supplier product description
- Type: Camera Passage System
- Model: Hikvision DS-KV8213-WME1(C)
- Installation: Concealed
- Resolution: 2 MP
- Door control: 2 doors
- Relays: 2 relays
- Body: Aluminum
- RFID support: Mifare
- Connection: RS-485
- Screen: 4 inches
- Connections: Wi-Fi
- Water resistance: IP65
- Impact resistance: IK8
- Power supply: 12 VDC / PoE 48V
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 M
- RAM256 M
- CPUEmbedded MCU Processor
- Display parameters
- Screen size/
- Operation method/
- Type/
- Resolution/
- Video parameters
- Lens1
- Resolution
Main stream : 1920 × 1080
Sub stream : 640 × 480
- FOVHorizontal: 124° Vertical: 75°
- WDRSupport
- Supplement lightIR supplement
- Video compression standardH.264
- Audio parameters
- Audio compression standardG.711 U, G.711 A
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- User capacity2000
- Card capacity10000
- Linked indoor station capacity2(main indoor station)
- Sub door station capacity16
- Network parameters
- Communication protocolTCP/IP, RTSP
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-Fi standardWi-Fi 802.11 b/g/n
- Bluetooth version/
- 3G/4G standard/
- Received frequency2.4 to 2.4835GHz
- Transmitted frequency2.4 to 2.4835 GHz
- Bandwidth20/40 MHz
- Frequency power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card reading frequency13.56 MHz
- Device interfaces
- Alarm input4
- Network interface1
- TAMPER1
- Exit button2 Max.
- RS-4851
- USB0
- Wiegand0
- TF card1(Reserved)
- Alarm output0
- Lock control2
- Door contact input2
- Power interface1
- General
- Button2
- InstallationFlush mounting
- Indicator3
- Weight384 g
- Protective levelIP65, IK08
- Working temperature-40° C to 53° C (-40° F to 127.4° F)
- Working humidity10% to 95%
- Dimensions174 mm × 91 mm × 29 mm
- Battery/
- Application environmentOutdoor
- Power consumption＜ 10 W
- LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
