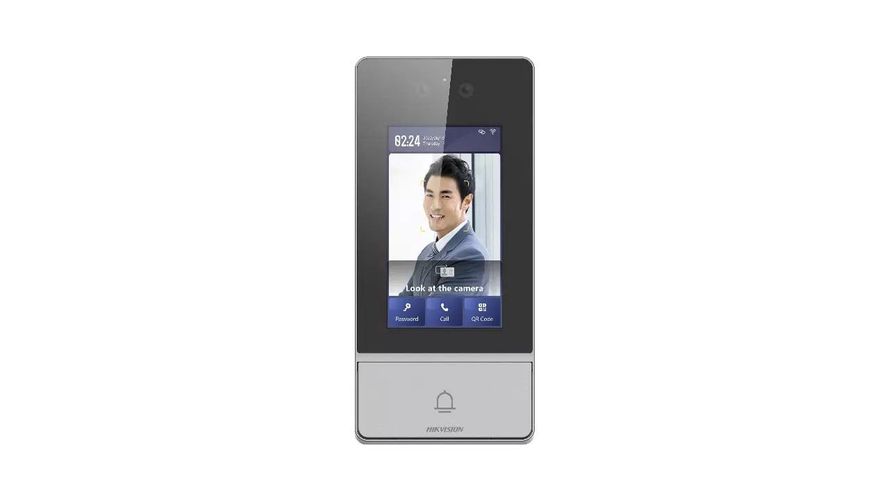

Hikvision DS-KV9503-WBE1
Product Code: PSKDSDSKV9503WBE1
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Hikvision DS-KV9503-WBE1
Specifications
Supplier product description
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP camera with IR supplement
- One-touch physical button for easier calls
- Standard PoE power supply
- IK08 & IP65 higher protection level
- Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
- Call directly to Hik-Connect APP without indoor station
- System parameters
- Operating systemLinux
- ROM4 GB
- RAM1 GB
- CPUEmbedded Processor
- Display parameters
- Screen size4.3-inch
- Operation methodTouch screen
- TypeColorful IPS
- Resolution800 × 480
- Brightness425 cd/m²
- Video parameters
- Supplement lightLow illumination, IR supplement lights
- Video standard
Main stream and sub stream: H.264
Third stream: H.265
- Lens2
- FOVHorizontal: 88°, Vertical: 44°
- WDR
Support
- Resolution2x2 MP
- Audio parameters
- Audio compression standardG.711 U, G.711 A
- Audio input
Built-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio compression bitrate64 Kbps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Fingerprint capacity/
- User capacity20000(Up to 20000 contacts can be added to the device)
- Card capacity100000
- Face capacity10000
- Linked indoor station capacity500
- Event capacity/
- Sub door station capacity16
- Network parameters
- Communication protocolTCP/IP, RTSP
- Wired network10/100 Mbps self-adaptive Ethernet
- Wi-FiWi-Fi 802.11 b/g/n
- BluetoothReserved
- 3G/4G/
- Authentication
- Card reading frequency13.56 MHz
- Face recognition distance0.3 to 2 m
- Face recognition accuracy rate≥ 99%
- Face recognition duration＜ 0.2 s per person
- Device interfaces
- Alarm input4 (2 exit butttons and 2 door contacts by default)
- Network interface1 RJ45
- TAMPER1
- Exit button2
- RS-4851
- USB/
- Wiegand/
- TF cardReserved
- Lock control2 relay
- Door contact input2
- Power interface1, 12 VDC input
- General
- Button1
- InstallationSurface mounting
- Indicator0
- Weight0.490 kg
- Protective levelIP65 & IK08
- Working temperature
-40° C to 60° C (-40° F to 140° F)
- Working humidity
10% to 90%
- Dimensions181.93 mm × 84.78 mm × 25.63 mm
- Battery/
- Power supply12 VDC, 1.5 A
- Application environmentOutdoor
- Power consumption≤ 6 W
- LanguageEnglish,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
Supplier parameters
Product code
PSKDSDSKV9503WBE1
Category
Door stations
Brand
Hikvision
Supplier's product code
PSKDSDSKV9503WBE1
Product ID
U-3062764
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
