Product description

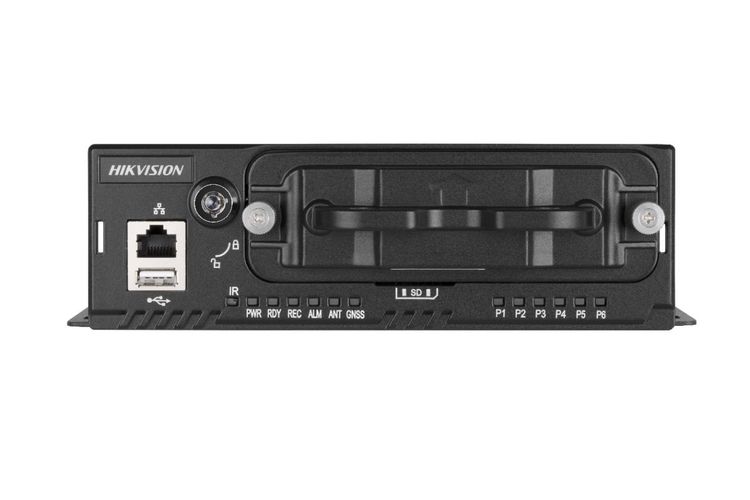

Hikvision NVR DS-MP5604N(1T)
Specifications
SKU
U-3822009
Product code
NVRDSMP5604N1T
Supplier product description
- 4-ch mobile NVR with decoding up to 4-ch 4 MP IP cameras
- Efficient H.265 compression technology
- Supports up to 2 × 2.5 inch HDDs/SSDs (up to 2 TB for each) and 1×SD (up to 256 GB)
- Supports pluggable 3G/4G, Wi-Fi module for communication
- Supports GPS positioning
- Video/Audio Input
- IP Camera4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.4
- Two-way Audio1, integrated in EXT.DEV interface
- Video/Audio Output
- Video Output
Main output: 1, integrated in EXT.DEV interface
VGA: 1
- Audio Output1, integrated in AVOUT of EXT.DEV interface2
- Storage
- HDD/SSD2 × 2.5 inch HDD/SSD, up to 2 TB for each HDD/SSD,A dummy HDD with USB 3.0 interface
- SD Card1 × SD card, up to 256 GB
- External Interface
- Network Interface
1 × 10M/100M RJ45 Ethernet interface
1 × 10M/100M 12M 6-pin aviation connector (Non-PoE)
- USB Interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 (5-pin aviation connector)
- Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
- Alarm Output2 relay signal outputs
- Serial Port1 × RS-232, 1 × RS-422
- Sensor-in4 high/low level signal inputs
- Wireless Network
- 3G/4G DialingWCDMA/TDD-LTE/FDD-LTE modules are supported. 1 × 3G/4G card slot, 1 × Rosenberger antenna
- Wi-Fi802.11b/g/n and 802.11ac are selectable. 1 antenna is needed for 802.11b/g/n module. 2 antennas are needed for 802.11ac module1 × 2.4 G Wi-Fi SMA antenna
- General
- Working Temperature
Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to +140 °F)
Other devices: -10 °C to +60 °C (+14 °F to +140 °F)
- Working Humidity10% to 95%
- Power Supply9 to 32 VDC
- ConsumptionStandby: ≤ 0.5 W,Full load: ≤ 70 W,Note: Without peripheral and storage media: ≤ 20 W
- Operating MethodMouse, IR remote control, Web control, and touchscreen
- Dimensions (W × D × H)206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch)
- Weight (Without Storage Media)1.6 kg (3.53 lb)
- Positioning
- GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 × Rosenberger antenna
- Encoding/Decoding Parameters
- Video CompressionH.264/H.265
- Encoding Resolution
Main stream:
4 MP/3 MP/1080p/720p/WD1/4CIF
Sub-stream: 720P/4CIF/2CIF/CIF
- Frame RatePAL: 1 to 25 fps, NTSC: 1 to 30 fps;
- Audio CompressionG.711/G.722.1
- Stream TypeVideo, Video & Audio
- Audio Bitrate16 Kbps
- Dual StreamSupported
- PoE
- PoE Interface4 × RJ45 10M/100M self-adaptive PoE interface
- Max. Consumption45 W
Supplier parameters
Product code
NVRDSMP5604N1T
Category
4 Channel NVR
Supplier's product code
NVRDSMP5604N1T
Product ID
U-3822009
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
