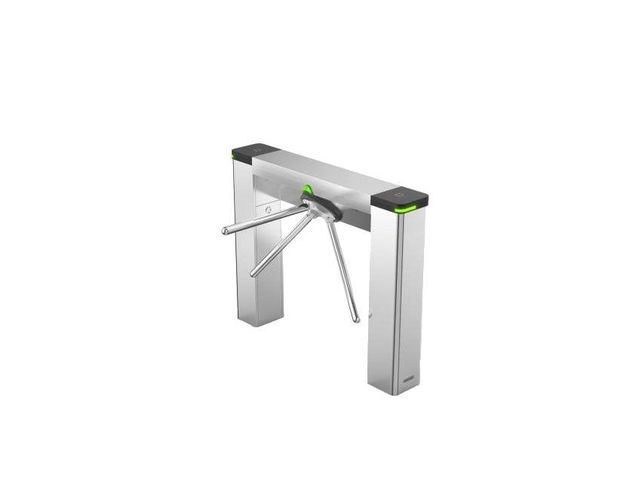

Hikvision Tripod turnstile DS-K3G501SX-S

Product Code: PSDSK3G501SXS
The photo is for illustration only. Please refer to the description for exact product specifications.
HIKVISION
More similar products

Price range

AmountPrice with tax (pcs)
1+
781.80781.80
wholesale

Min. qty: 1

Multiplier: 1

Total:

781.80
2025-07-21 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

HIKVISION
Hikvision Tripod turnstile DS-K3G501SX-S

Specifications

SKU
U-3822011
Product code
PSDSK3G501SXS

Supplier product description

  • 550mm
  • Right
  • Integrated mifare reader
  • Stainless steel
  • LED indication
  • Suitable for G501SX series
  • Outdoor and indoor use

  • System
  • MotorNA
  • MCBF≥ 3 million times
  • Network
  • Communication protocolISAPI
  • Wired network10/100 Mbps self-adaptive Ethernet
  • Interface
  • Network interface1
  • Lock control2
  • Exit button2
  • Alarm output2
  • TAMPERNA
  • RS-4854
  • RS-2322
  • WiegandNA
  • Fire alarm input1
  • Case input2
  • Hardware
  • Access controllerSupplied
  • Power supply for face recognition moduleSupplied for“Pg”type
  • Keyfob

    Not supplied

    Need order separately

  • Capacity
  • Card capacity500,000
  • Event capacity500,000
  • Authentication
  • Card typeEM/M1/Desfire/Felica
  • Function
  • Configuration via Web browserSupport
  • Configuration via mobile Web browserSupport
  • QR code recognitionOptional
  • Audio promptSupport
  • Keypad configurationSupport
  • General
  • Throughput

    More than 35 persons per minute

    The actual throughput is affected by the person passing rate and passing method.

  • Lane width550 mm
  • Barrier materialSUS304 stainless steel pipe
  • Pedestal materialSUS304 stainless steel thickness 1.5 mm(0.06")
  • Power

    Switching power supply: 100 to 240 VAC; 50 to 60 Hz

    Power adapter: 100 to 240 VAC; 50 to 60 Hz

  • Power consumption45W (stand by)
  • Working temperature

    Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F)

    Power adapter: -10 °C to 45 °C (14 °F to 113 °F)

  • Working humidity0% to 95% (No condensing)
  • Protective levelIPX4
  • Dimensions

    Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8\" × 47.6\")

    With package: 390 mm × 1185 mm × 1320 mm (15.4 × 46.7\" × 52.0\")"

  • Weight

    Without package: 45 kg (99.2 lb)

    With package: 69 kg (152.1 lb)

  • ApprovalCE/CE-LVD/CB/RoHS/REACH/WEEE
  • Configuration
  • Lane width550
  • Pedestal length1210 mm
  • Module selectionYES
  • Pedestal width200 mm
  • Wall distance10mm
  • BaseYES
  • Barrier materialStainless steel pipe
  • Application environmentIndoor and outdoor
  • Authentication modeCard;Face;QR code;Fingerprint
  • Card typeEM;M1;Desfire
  • Recommended width550
  • Base modelDS-K3G501-BASE
  • Side pedestalYES
  • Side pedestal typeEmpty (230 mm)/fence (130 mm)
  • Product typeTripod Turnstile
  • Remote controller type433Mhz;868Mhz
  • Movement Protrusion Width29 mm
