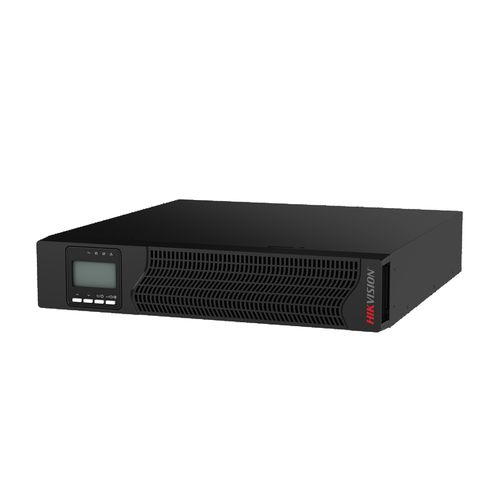

HIKVISION UPS DS-UPS10K-R/TJL(O-STD)/IEC (Rack/Tower, LCD, 10000VA/10000W)

Product Code: UPS10000DSRTR
The photo is for illustration only. Please refer to the description for exact product specifications.
HIKVISION
Brand
More similar products

Price range

AmountPrice with tax (pcs)
1+
€2,022.25€2,022.25
wholesale

Min. qty: 1

Multiplier: 1

Total:

€2,022.25
2025-12-11 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

HIKVISION
HIKVISION UPS DS-UPS10K-R/TJL(O-STD)/IEC (Rack/Tower, LCD, 10000VA/10000W)

Specifications

SKU
U-4888970
Brand
Product code
UPS10000DSRTR

Supplier product description

  • Type: UPS
  • Model: HIKVISION DS-UPS10K-R/TJL(O-STD)/IEC
  • Power: 10000VA / 10000W
  • Design: Rack/Tower
  • Display: LCD
  • Ports: 3xC13, 2xC19, 1xRS232, 1xRS485, USB B, 2xRJ45, parallel power expansion ports
  • LAN card compatibility: R Series - SNMP Card or MAS4 Card dry contacts
  • UPS type: Online
  • Pure sine wave
  • Dimensions: 440x621.5x86.5 (2U) WxDxH
  • Batteries: Without batteries
  • Enclosure: Metal
  • Supports up to 4 battery packs DS-UPSB09192A-R/TJ or DS-UPSB09240A-R/TJ

  • Battery
  • Battery TypeValve Regulated Lead Acid (VRLA)
  • Charging Current (Max.)15A
  • DC System Voltage (VDC)192/240Vdc (Settable)
  • Expandable RuntimeYes, External battery pack: DS-UPSB09192A-R/TJ, or DS-UPSB09240A-R/TJ
  • Typical Backup TimeView Runtime Graph
  • Efficiency
  • AC ModeUp to 95.5%
  • Battery ModeUp to 93.5%
  • Environment
  • Altitude0~3000m (1000~3000m derating required)
  • Humidity Range0~95% (Non - condensing)
  • Noise Level≤50dB
  • Operating Temperature0℃~40℃
  • Storage Temperature-25℃~55℃
  • Indicator
  • AlarmBattery mode/Battery low voltage/Overload/Fault
  • LCD displayInput voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time
  • Input
  • Input Frequency40~70Hz (50/60Hz Auto-Sensing)
  • Input Voltage Range110~300Vac (110~300Vac@50% load/176~300Vac@100% load)
  • Nominal Voltage208/220/230/240Vac
  • PhaseSingle Phase
  • Power factor≥0.99
  • Output
  • Crest factor3:1
  • Harmonic distortion (THDv)≤1% Linear load≤3% Non linear load
  • Output FrequencyOnline mode：±1%/±2%/±4%/±5%/±10% of the rated frequency (Optional) Battery mode: (50/60±0.1%)Hz
  • Output SocketsIEC version: Connecting terminal +IEC socketUS version: Connecting terminal+US socket panel
  • Output Voltage208/220/230/240Vac
  • Output WaveformPure Sinewave
  • Power factor 1
  • Transfer TimeAC mode to Bat.mode: 0ms Inverter to Bypass: 0ms
  • Physical
  • Dimension W x D x H (mm)440×681.5×131
  • Net weight (kg)65
  • Power
  • UPS Capacity 10000 VA / 10000 W
  • Standards
  • EMCCE-EMC IEC/EN 62040-2 (IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11, IEC61000-2-2)
  • SafetyCE-LVD IEC/EN 62040-1, IEC/EN 62477-1

Supplier parameters

Product code
UPS10000DSRTR
Brand
Hikvision
Supplier's product code
UPS10000DSRTR
Product ID
U-4888970
Category
Power Supply Un
