Product description

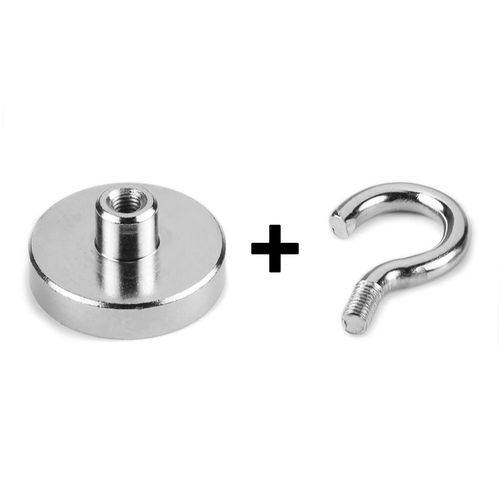

An affordable magnetic hook - it impresses with an adhesive force of approx. 40 kg, but it is still easy to handle.
If you would like to attach the hook magnet to a ferromagnetic surface on a wall, please take note of the displacement force indicated above. This specification corresponds to the maximum weight the magnetic hook can support on the wall under optimal conditions.
Please note: Carefully screw the hook into the threaded bushing as far as it will go.
The full adhesive force is achieved when the ferromagnetic counterpart is smooth and of sufficient thickness and when the pot magnet makes direct and full flush contact. Pot magnets already lose much of their adhesive force at a distance of only half a millimetre to the ferromagnetic surface. This characteristic is more pronounced in pot magnets than in other ferrite and neodymium magnets.
| EAN | 7640155432405 |
| Material | NdFeB |
| Strength | approx. 40 kg (approx. 392 N) |
| Displacement force | approx. 8 kg (approx. 78,5 N) |
| Colour | Silver-coloured |
| Design | With round hook |
| Pot diameter D | 32 mm |
| Neck diameter d | 10 mm |
| Pot height H1 | 7 mm |
| Total height without hook H2 | 15,5 mm |
| Total height with hook H3 | 45 mm |
| Hook opening width a | 11 mm |
| Hook inside diameter b | 14 mm |
| Thread size | M5 |
| Tolerance | +/- 0,1 mm |
| Magnetisation | N38 |
| Coating | Nickel-coated (Ni-Cu-Ni) |
| Visible side of the magnet | North pole |
| Max. working temperature | 80 °C |
| Steel | Q235 (China) |
| Shape | Disc |
| Weight | 52 g |
