Relay: electromagnetic; DPDT; Ucoil: 110VAC; Icontacts max: 10A RELPOL
Product Code: R2M-110VAC

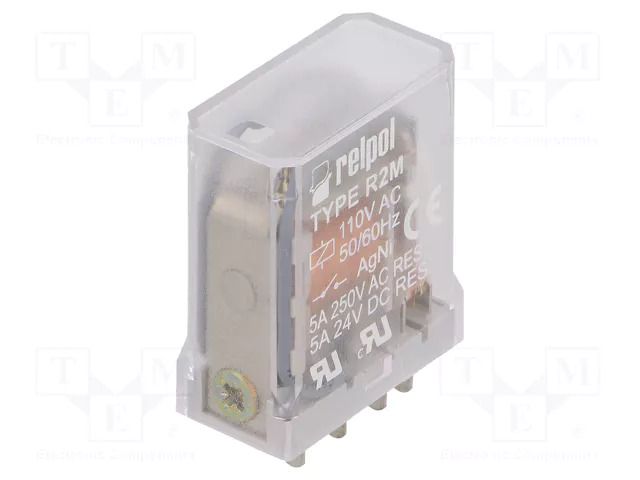

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 110VAC; Icontacts max: 10A RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 110VAC; Icontacts max: 10A
Useful information
Supplier parameters
Product code
R2M-110VAC
AC contacts rating @R
5A / 250V AC
Body dimensions
27.5x14x33mm
Coil power consumption
1.2VA
Coil resistance
5.67kΩ
Coil voltage min.
88V AC
Contact current max.
10A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
5A / 24V DC
Electrical life
20000000 cycles
Leads
connectors
Leads dimensions
2.6x0.5mm
Manufacturer
RELPOL
Manufacturer series
R2M
Mechanical durability
1000000 cycles
Mounting
socket
OEM number
620488
Operate time
8ms
Operating temperature
-40...55°C
Rated coil voltage
110V AC
Relay variant
industrial
Related items
G2M
Release time
7ms
Switched voltage
max. 220V DC
Switching capacity
1.25kVA
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
R2M-110VAC
Product ID
U-301961
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
