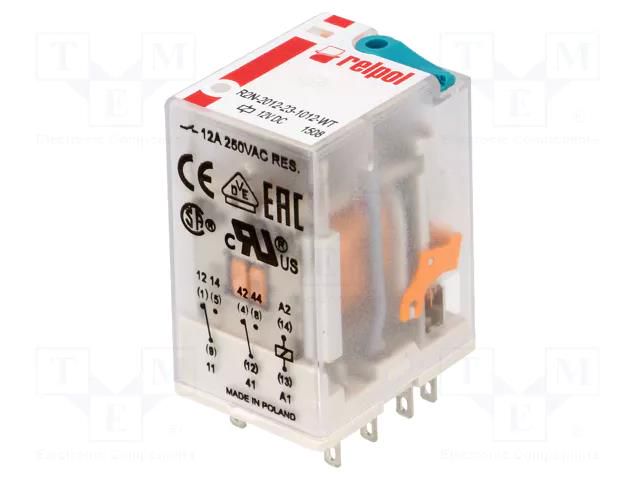

Relay: electromagnetic; Ucoil: 12VDC; DPDT; Icontacts max: 24A RELPOL
Product Code: R2N2012231012WT
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; Ucoil: 12VDC; DPDT; Icontacts max: 24A RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; Ucoil: 12VDC; DPDT; Icontacts max: 24A
Useful information
Supplier parameters
Product code
R2N2012231012WT
AC contacts rating @R
12A / 250V AC
Body dimensions
27.5x21.2x35.6mm
Coil power consumption
0.9W
Coil resistance
160Ω
Coil voltage
12V DC
Contact current max.
24A
Contact material
AgNi
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
12A / 24V DC
IP rating
IP40
Leads
connectors
Leads dimensions
2.2x0.5mm
Manufacturer
RELPOL
Manufacturer series
R2N
Mechanical durability
20000000 cycles
Mounting
socket
Number of pins
8
OEM number
860939
Operate time
13ms
Operating temperature
-40...70°C
Optional equipment
mechanical indicator
Relay variant
industrial
Related items
G4/2
Release time
3ms
Switched voltage
max. 250V DC
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
R2N2012231012WT
Product ID
U-301967
