Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 24A RELPOL
Product Code: R2N2012231024WTL

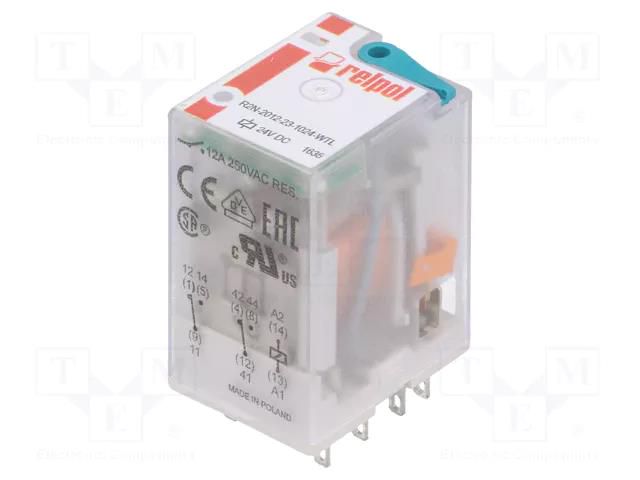

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 24A RELPOL
Specifications
Supplier product description
Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 24A
Supplier parameters
Product code
R2N2012231024WTL
AC contacts rating @R
12A / 250V AC
Body dimensions
27.5x21.2x35.6mm
Coil power consumption
0.9W
Coil resistance
640Ω
Contact current max.
24A
Contact resistance
100mΩ
Contacts configuration
DPDT
DC contacts rating @R
12A / 24V DC
IP rating
IP40
Leads
connectors
Leads dimensions
2.2x0.5mm
Manufacturer
RELPOL
Manufacturer series
R2N
Mounting
socket
Number of pins
8
OEM number
860398
Operating temperature
-40...70°C
Optional equipment
mechanical indicator
Rated coil voltage
24V DC
Relay variant
industrial
Switched voltage
max. 250V DC
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
R2N2012231024WTL
Product ID
U-301969
