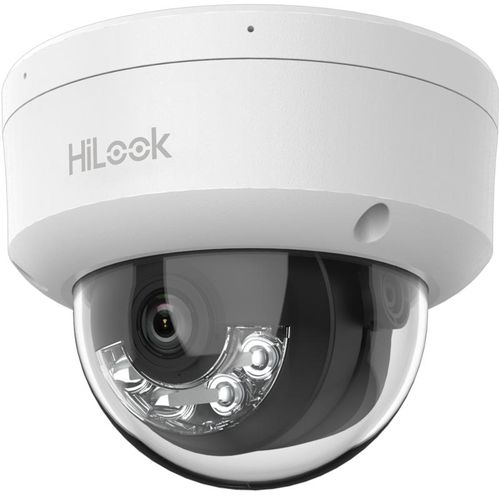

HiLook dome camera IPC-D141H-C F2.8 (white, 4 MP, 20 m. IR, 120dB WDR)

Product Code: TVKIPIPCD140HLUF28
The photo is for illustration only. Please refer to the description for exact product specifications.
Brand
More similar products

Price range

AmountPrice incl. VAT (pcs)
1+
€72.70€72.70
wholesale

Min. qty: 1

Multiplier: 1

Total:

€72.70
2026-08-06 Estimated delivery

*Total delivery cost will be calculated in the checkout.

Warehouse in Europe

Warehouse in Europe

90% positive feedback

94%+ positive feedback

30 day money back guarantee

30 day money back guarantee

Product description

HiLook dome camera IPC-D141H-C F2.8 (white, 4 MP, 20 m. IR, 120dB WDR)

Specifications

SKU
U-3917267
Brand
Product code
TVKIPIPCD140HLUF28

Supplier product description

  • Type: IP camera
  • Brand: HiLook
  • Model: IPC-D141H-C F2.8
  • Camera type: DOME
  • Video compression: H.265+
  • Resolution: 2560 × 1440, 4 MP
  • Lens: 2.8 mm
  • Viewing angle: 104°
  • IR illumination: up to 20 m
  • WDR: 120 dB
  • Power supply: PoE
  • Compatible with DS-1272ZJ-120

  • Approval
  • EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,KC: KN32: 2015, KN35: 2015
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Camera
  • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°
  • Day & NightIR cut filter
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • DORI
  • DORI2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
  • LinkageNotify surveillance center, send email, trigger capture
  • General
  • DimensionØ110.8 mm × 85.2 mm (Ø4.36" × 3.35")
  • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
  • LanguageEnglish, Ukrainian
  • MaterialPlastic
  • Package Dimension163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
  • Power 12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 0, max. 6.5 W
  • Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • WeightApprox. 240 g (0.5 lb.)
  • With Package WeightApprox. 400 g (0.8 lb.)
  • Illuminator
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Supplement Light RangeUp to 20 m
  • Supplement Light TypeIR
  • Image
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Privacy Mask1 programmable polygon privacy mask
  • SNR≥ 52 dB
  • Wide Dynamic Range (WDR)Digital WDR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Lens
  • ApertureF2.2
  • Depth of Field2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
  • Focal Length & FOV2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
  • Iris TypeFixed
  • Lens MountM12
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Network
  • APIONVIF (Profile S, Profile T), ISAPI, SDK
  • ClientiVMS-4200
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users3 user levels: administrator, operator, and user
  • Web BrowserLocal service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
  • Video
  • Bit Rate ControlCBR,VBR
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Main Stream50 Hz:20 fps (2560 × 1440),25 fps (1920 × 1080, 1280 × 720)60 Hz:20 fps (2560 × 1440),24 fps (1920 × 1080, 1280 × 720)
  • Region of Interest (ROI)1 fixed region for main stream
  • Sub-Stream50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360)60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
  • Video Bit Rate32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
