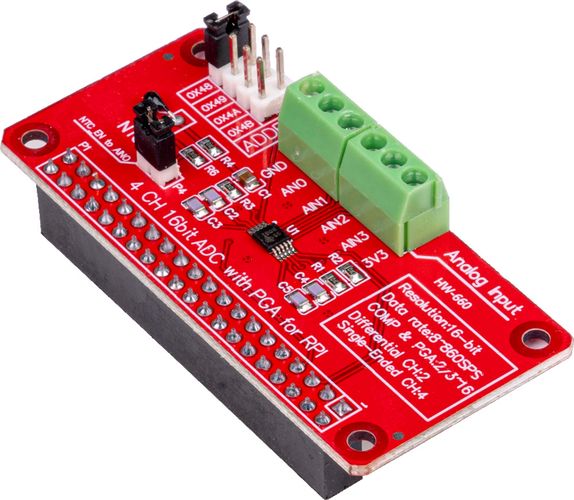

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Joy-iT ADC ( Analog Digital Converter ) for Raspberry Pi
Useful information
Specifications
Supplier product description
With the help of the RB-ADC01 you can read analog data with your Raspberry Pi. The 16-bit chip ADS1115 is an analog to digital converter that processes the analog signal to digital data and sends it via I2C bus to the Raspberry Pi. The ADC module can be easily plugged on the GPIO header. So analog sensors and other accessories can be used.
Technical data:
Model: ADS1115
Function: Analog Digital Converter
Interface: I2C
Channels: 4
Analog input voltage: 3.3 V
Analog input current: 10 mA continuous 100 mA peak
Resolution: 16 bit
Used I2C address: 0x48(default) 0x49, 0x4A, 0x4B (configurable)
Programmable data rate: 8 SPS to 860 SPS
Special feature: Using analog peripherals with the Raspberry Pi
Operating temperature: -30 to 80°C
