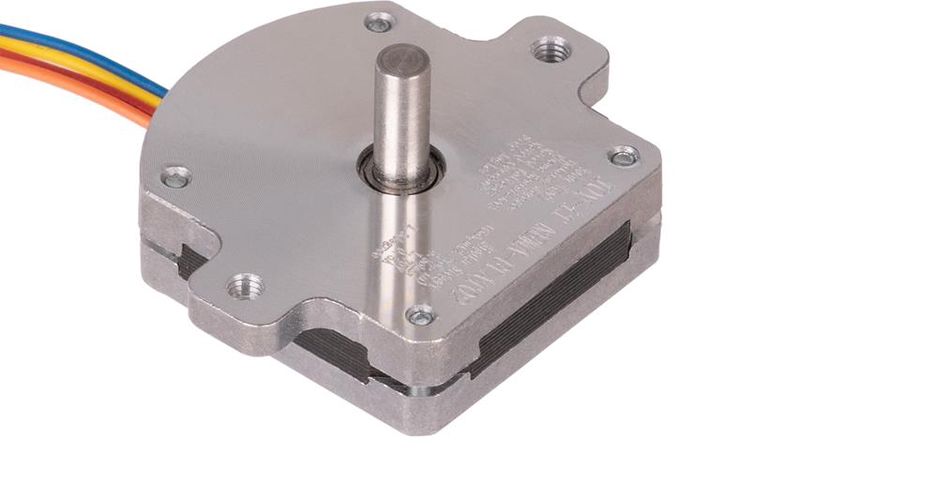

Joy-iT Flat NEMA stepper motor
Product Code: NEMA-FLAT02
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Joy-iT Flat NEMA stepper motor
Specifications
Supplier product description
These flat stepper motors have especially been developed for the feeders in semiconductor production. These stepper motors can be used very well in other applications with limited assembly space.
Technical data:
Shaft dimensions: Ø 4 x 10 mm
Interface connections: 4 pin JST cable connector
Cable Length: 75 mm
Special characteristics: Ultraslim Design
Holding torque: 16 mNm
Rated voltage: 1.75 V
Rated current: 0.5 A
Step angle: 1.8° ±5 %
No. of phases: 2
Phase resistance: 3.5 Ω
Phase inductivity: 0.9 mH
Isolation resistance: 100 MΩ min. @500 V DC
Isolation class: B (130 °C)
Rotational inertia: 2 g·cm²
Detent torque: 2 mNm
Permissive operating temperature: -10 °C to 50 °C
Supplier parameters
Product code
NEMA-FLAT02
Brand
Joy-iT
Supplier's product code
NEMA-FLAT02
Product ID
U-2614752
