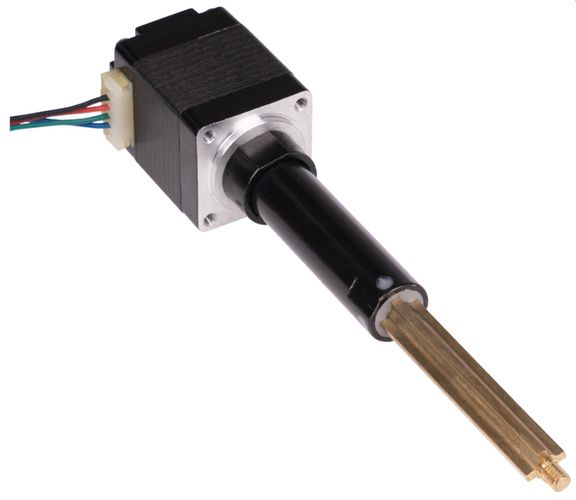

Joy-iT NEMA8 Linear actuator stepper motor, travel per step 0.02mm, 5.28V 0.24A

This linear actuator is based on a NEMA 8 stepper motor. Due to the high torque for this size of motor, it is possible to achieve very high performance in linear motion with very little space.

Shaft dimensions Ø M3 x 4 mm
Connection 4 Cables
Travel per step 0.02 mm per step
Minimal thrust 0.5 kg at 600 pps
Rated voltage 5.28 V
Rated current 0.24 A
Step angle 1.8 ° ±5 %
Number of Phases 2
Phase resistance 22 Ω
Phase inductivity 6 mH
Isolation resistance 100 MΩ min. @500 V DC
Isolation class B (130°C)
Rotational inertia 2 g·cm²
permitted operating temperature -10 to 50 °C

This linear actuator is based on a NEMA 8 stepper motor. Due to the high torque for this size of motor, it is possible to achieve very high performance in linear motion with very little space.

Technical data:

Shaft dimensions: Ø M3 x 4 mm

Connection: 4 Cables

Travel per step: 0.02 mm per step

Minimal thrust: 0.5 kg at 600 pps

Rated voltage: 5.28 V

Rated current: 0.24 A

Step angle: 1.8 ° ±5 %

Number of Phases: 2

Phase resistance: 22 Ω

Phase inductivity: 6 mH

Isolation resistance: 100 MΩ min. @500 V DC

Isolation class: B (130°C)

Rotational inertia: 2 g·cm²

Permitted operating temperature: -10 to 50 °C
