Product description

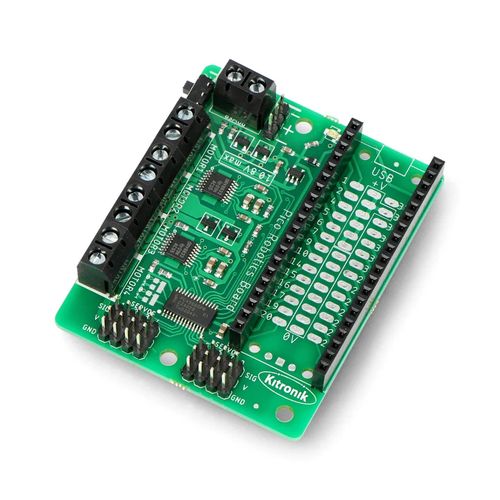

Kitronik Robotics Board - controller for 4 motors and 8 servos - 3-10.8V - for Raspberry Pi Pico - Kitronik 5329
Specifications
Supplier product description
A module manufactured by Kitronik in the form of a motor and servo controller. The Kitronik Robotics Board allows you to control four DC motors (or two stepper motors) and eight servos. In addition, it also has 27 IO leads with which you can extend the functionality of the Raspberry Pi Pico. The maximum current consumption per motor is 1.5 A, and the maximum continuous current for all connected servos and motors should not exceed 12 A. The supply voltage of the components ranges from 3 V to 10.8 V.
Supplier parameters
Product code
KTR-19595
Sensor - type
motor driver
Voltage from
10.8 V
Voltage to
3.0 V
Brand
Kitronik
Supplier's product code
KTR-19595
Product ID
U-2375716
