Laboratory Power Supply, 100W, 0-60V, 0-5A, 10mV,1mA, RS-232, UNI-T
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
TheUDP6720series power supplies are of the pulsed type, with a wide output range and high performance. They are designed to provide a cost-effective programmable DC power solution for teaching, research, experimental development, manufacturing and industrial applications. The higher power ratio allows the device to be applied in a wide range of applications. A clear LCD display provides a better measurement and debugging experience.
Key features
● Fully digital control
● High full scale resolution: 10 mV/1mA
● Low ripple and noise
● Software adjustment function
● Smallest overall dimension
●TFT LCD display
●Remote compensation
● RS232 communication support
● Intelligent fan adjustment
● Constant voltage and constant current output
● High reliability: overvoltage/overcurrent/overheating protection function
● List and delay function
● Output controlled by switch
● High quality and high cost performance
● Multiple output voltage/current groups can be preset: 3×200 groups

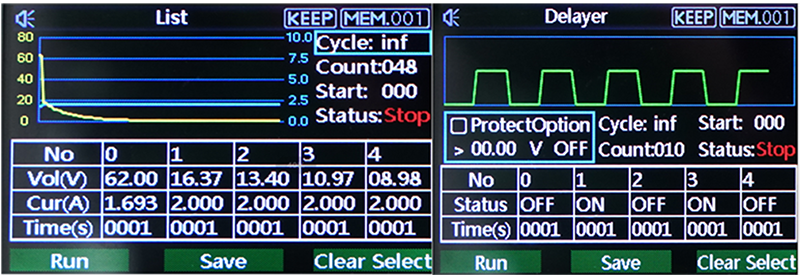

List and delay functions
The list function allows you to preset the output curve of the power supply to facilitate automatic testing.
The delay function allows you to set the delay of the power supply output.
This can help with on-off tests or other related tests.

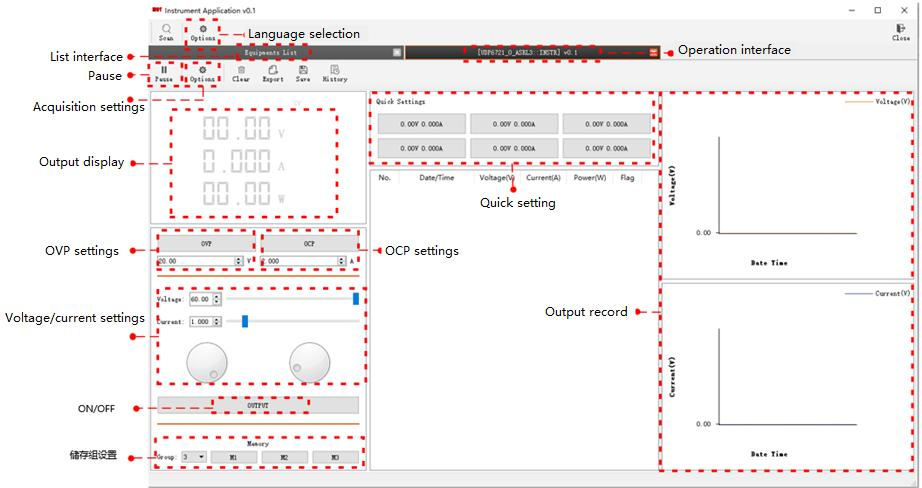

RS232 connection
Supports remote control and can be set up and monitored on a PC.

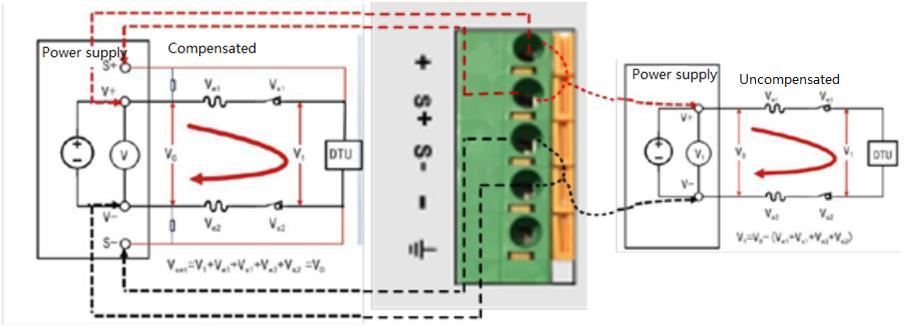

Remote compensation function
Supports remote compensation and the return voltage of the power supply is displayed as a voltage value at the load end.

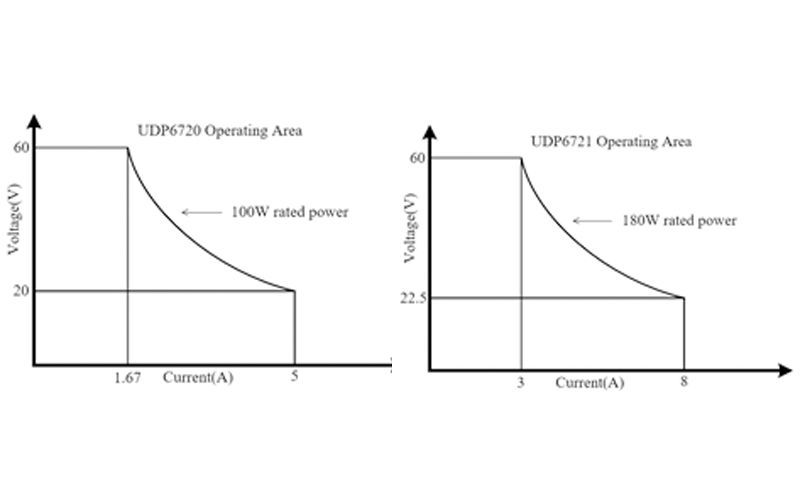

Wide output range
This series is a wide range, high efficiency DC power supply with an output power ratio of 3.0. The output range covers a wide range limited by maximum voltage, maximum current and maximum power. One such power supply can replace several lower-power devices, thus reducing purchase costs.

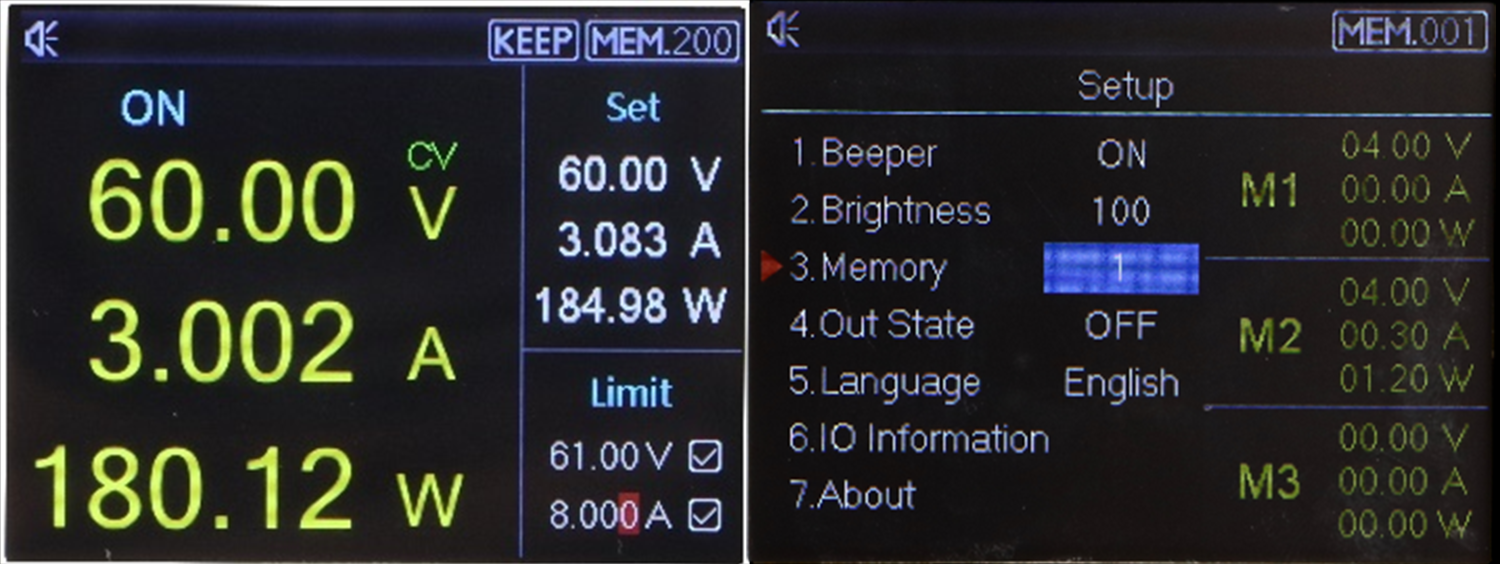

Colour LCD display
The UDP6700 series uses a 2.8" colour LCD display that allows users to see more information without the need for repeated reading or data logging. It also provides the ability to control multiple parameters that can be set to suit individual needs.
The description was translated using an automatic translator. If you notice any discrepancies, please notify us by email: [email protected].
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T 100W Programmable DC Power Supply
This UNI-T 100W Laboratory Power Supply is a precision instrument ideal for various applications requiring a stable and adjustable DC voltage and current source. It's perfect for research, development, testing, and educational purposes.
Key Features and Specifications
- Brand: UNI-T
- Power: 100W
- Voltage Range: 0-60V
- Current Range: 0-5A
- Voltage Resolution: 10mV
- Current Resolution: 1mA
- Interface: RS-232
Applications
This versatile bench power supply is suitable for a wide range of uses, including:
- Electronic circuit testing and development
- Component characterization
- Educational experiments and demonstrations
- Calibration and maintenance of electronic equipment
Why Choose This UNI-T Power Supply?
This laboratory power supply offers excellent value and performance. Its precise voltage and current control, combined with the RS-232 interface for remote operation, makes it a powerful tool for any laboratory or workshop. The high resolution ensures accurate and reliable results. Choose this UNI-T power supply for its precision, versatility, and ease of use.
Technical Specifications Summary
| Parameter | Value |
|---|---|
| Output Power | 100W |
| Output Voltage | 0-60V |
| Output Current | 0-5A |
| Voltage Resolution | 10mV |
| Current Resolution | 1mA |
| Communication | RS-232 |
This reliable and accurate power supply is an essential tool for any professional or hobbyist working with electronics.
