Product description

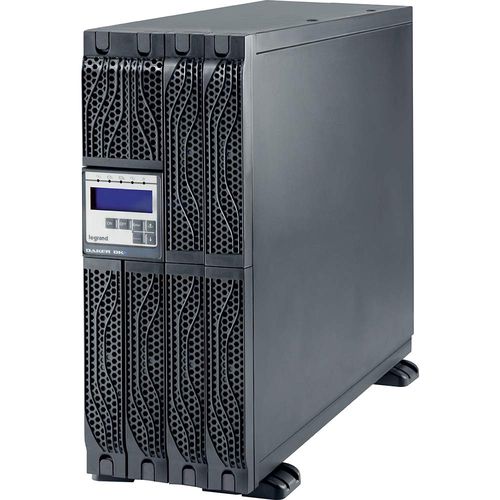

LEGRAND UPS DAKER DK PLUS 310174 (Rack/Tower, LCD, 6000VA/6000W)
Specifications
Supplier product description
- Type: UPS
- Model: DAKER DK+
- Manufacturer code: 310174
- Power: 6000VA / 6000W
- Design: Rack/Tower
- Display: LCD
- Connections: 8×C13, 2×C19, RS232, USB B, 2×RJ45, SNMP, PDU terminal connection
- LAN card compatibility: Yes
- UPS type: Online
- Waveform: Pure sine wave
- EPO function: Emergency Power Off
- Bypass function: Yes
- Dimensions: 440×176 (4U)×680 mm (W×H×D)
- Batteries: 20×12V/5Ah
- Chassis: Metal
- External battery pack connection: Supported
- General
- Nominal power (VA)6000
- Active power (W)6000
- TechnologyOn-Line Double Conversion VFI-SS-111
- WaveformSinusoidal
- UPS architectureConvertible tower and rack 19"
- Surge Rating1900
- ECO Mode efficiency98%
- Input voltage230 V
- Input frequency50-60 Hz ±5% Autosensing
- Input Voltage Range170V - 288V on full load
- THD Input current< 3%
- Input power factor> 0.99
- Output voltage230V ± 1%
- Output frequency (nominal)50/60 Hz (settable from LCD panel) ± 0.1%
- Crest Factor1:3
- THD Output voltageLinear load 2%, Nonlinear load 5%
- Output Voltage Tolerance±1%
- Uptime ExpansionNo
- Number of batteries20
- Battery series Type/Voltage12V 5Ah
- Uptime with 80% load (min)4
- Display and SignalsFour buttons and four LEDs to monitor UPS status in real time
- Communication PortsRS232 serial ports, USB
- Remote ManagementAvailable
- Network interface slotSNMP
- Measurements H x L x D (mm)440 x 176 (4U) x 680
- Battery Cabinet Measurements H x L x D (mm)440 x 132 (3U) x 680
- Net Weight (kg)60
- Operating temperature (°C)0 ÷ 40 °C
- Degree of protectionIP20
- Relative humidity (%)0-95% non-condensing
- Noise level at 1 m (dBA)< 50
- Heat Loss (BTU/h)1300
- CertificationsEN 62040-1, EN 62040-2, EN 62040-3
