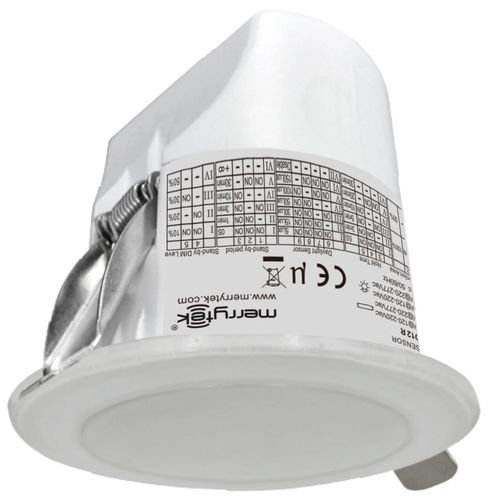

MERRYTEK Daylight Harvesting motion sensor, flush-mount

MERRYTEK Daylight Harvesting motion sensor, flush-mount

A microwave sensor with a daylight harvesting system Daylight Harvesting for controlling 1-10V luminaires, designed for flush mounting. Simplicity of installation, configuration, and energy savings are the main advantages of the MSA012R sensor. It is equipped with a Daylight Harvesting system that adjusts the light to the user's needs while optimizing energy consumption. The system analyzes the amount of sunlight in a room and automatically adjusts the light coming from the luminaires (1-10V) to the level indicated as desired (using a remote control or DIP switches). Adapting lighting to weather conditions, time of day, or the state of room usage results in tangible benefits in the form of optimal energy use. Additionally, thanks to the use of a highly sensitive microwave motion sensor, the luminaires remain off if no one is nearby. Even the slightest movement will turn the light back on the ceiling. The maximum operating height of the MSA012R sensor is 6 meters, making it widely applicable. It is suitable for office spaces, hotels, restaurants, and public utility establishments. The load capacity is up to 600W, so there is no need to use a separate sensor for each luminaire. The installation process is extremely simple – the schematic is available for download on the website below. Main benefits: •Automatic brightness adjustment of fixtures depending on the level of daylight •One sensor controls multiple fixtures •Possibility to connect to an On/Off motion sensor •Mounting height up to 6 meters •Small size •A frequency of 5.8GHz ensures resistance to interference from other wireless networks (WiFi, BT, 5G, etc.) •5-year warranty Recommended for: • 1-10V LED Panel • Linear lighting ((RANGER, FUSION)) • High Bay (PHANTOM) • All lamps with a 1-10V system If you are looking for industrial sensor (e.g., for High Bay fixtures in a warehouse) with a higher working height and resistance to external factors (dust, dirt, water), be sure to check out MERRYTEK MC054 RC4.
