Product description

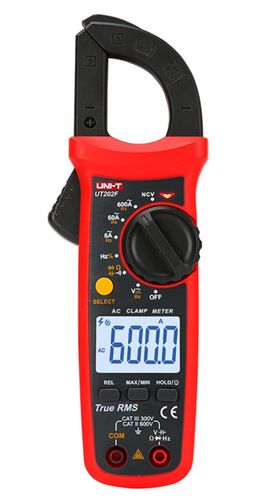

UT200R Series 400A/600A Digital Clamp Meters
UT200R series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.
Models in UT200R Series: UT201R, UT202R, UT202F, UT203R, UT204R
Features of UT200R Series 400A/600A Digital Clamp Meters
Certifications: CE, UKCA, cETLus
● True RMS
● LCD backlight
● Larger screen and display digits
● 60mF large capacitance measurement (202F/204R)
Specifications of UT200R Series 400A/600A Digital Clamp Meters
|
Specifications |
Range |
UT201R |
UT202R |
UT202F |
UT203R |
UT204R |
|
AC current (A) |
0.04~400A |
±(2%+10) |
±(2%+10) |
±(2%+5) |
||
|
0.06~600A |
±(2%+10) |
±(2%+5) |
||||
|
AC current frequency (Hz) |
50Hz~100Hz |
±(1%+5) |
±(1%+5) |
±(1%+5) |
||
|
DC current (A) |
0.04~400A |
±(2%+5) |
||||
|
0.06~600A |
±(2%+5) |
|||||
|
AC voltage (V) |
600V |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
±(0.8%+5) |
|
AC voltage frequency (Hz) |
10Hz~10kHz |
±(1%+5) |
±(1%+5) |
±(1%+5) |
||
|
10Hz~60kHz |
±(0.5%+2) |
±(0.5%+2) |
||||
|
DC voltage (V) |
600V |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
±(0.5%+2) |
|
Resistance (Ω) |
40MΩ |
|||||
|
60MΩ |
±(0.8%+2) |
±(0.8%+2) |
||||
|
Capacitance (F) |
4mF |
±(4%+5) |
||||
|
40mF |
±(4%+5) |
|||||
|
60mF |
±(4%+5) |
±(4%+5) |
||||
|
Temperature (℃) |
-40℃~1000℃ |
±(1.5%+5) |
±(1.5%+5) |
|||
|
Frequency (Hz) |
10Hz~10MHz |
±(1%+5) |
±(0.1%+4) |
±(0.1%+4) |
||
|
Features |
||||||
|
Display count |
4000 |
4000 |
6000 |
4000 |
6000 |
|
|
Auto range |
√ |
√ |
√ |
√ |
√ |
|
|
Jaw opening |
28mm |
28mm |
28mm |
28mm |
28mm |
|
|
True RMS |
√ |
√ |
√ |
√ |
√ |
|
|
NCV |
√ |
√ |
√ |
√ |
√ |
|
|
Continuity test |
√ |
√ |
√ |
√ |
√ |
|
|
Diode |
√ |
√ |
√ |
√ |
√ |
|
|
MAX/MIN |
√ |
√ |
√ |
√ |
√ |
|
|
Relative mode |
√ |
√ |
√ |
√ |
||
|
Zero mode |
√ |
√ |
||||
|
Data hold |
√ |
√ |
√ |
√ |
√ |
|
|
Low battery indication |
√ |
√ |
√ |
√ |
√ |
|
|
Auto power off |
√ |
√ |
√ |
√ |
√ |
|
|
General Characteristics |
||||||
|
Power |
1.5V battery (R03) x 2 |
|||||
|
Display |
37mm x 25mm |
|||||
|
Product color |
Red and grey |
|||||
|
Product net weight |
UT201R/202R/202F: 248g; UT203R/204R: 235g |
|||||
|
Product size |
215mm x 63mm x 36mm |
|||||
|
Standard accessories |
Batteries, test leads, Themocouple (UT202R/204R) |
|||||
|
Standard individual packing |
Gift box, carrying bag, English manual |
|||||
|
Standard quantity per carton |
40pcs |
|||||
|
Standard carton measurement |
485mm x 295mm x 385mm |
|||||
|
Standard carton gross weight |
UT201R: 16.6kg; UT202R: 17.1kg; UT203R: 16.1kg; UT202F/UT204R: 16.7kg |
|||||
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T UT201R/UT202R/UT202F Digital Clamp Meter
The UNI-T UT201R/UT202R/UT202F is a versatile, true RMS digital clamp meter designed for accurate and safe electrical measurements. This professional-grade multimeter is ideal for electricians, technicians, and DIY enthusiasts.
Key Features
- True RMS Measurement: Provides accurate readings even with non-sinusoidal waveforms.
- Multiple Measurement Functions: Measures AC/DC voltage, AC current, resistance, capacitance, frequency, temperature (UT202R only), and performs continuity and diode tests.
- Non-Contact Voltage Detection (NCV): Safely detects the presence of AC voltage without direct contact.
- High Voltage Measurement Capability: Measures voltages up to 600V.
- Large LCD Display: Offers clear and easy-to-read measurements.
- Safety Features: Designed to meet safety standards for safe operation.
- Durable Design: Built to withstand the rigors of daily use.
Applications
This multifunction clamp meter is suitable for a wide range of applications, including:
- Electrical troubleshooting and maintenance
- Industrial and automotive applications
- HVAC/R system diagnostics
- Residential and commercial electrical work
Why Choose UNI-T?
UNI-T is a trusted brand known for producing high-quality, reliable test and measurement equipment. This clamp meter offers a combination of accuracy, safety, and versatility, making it an excellent choice for professionals and hobbyists alike.
| Parameter | Value |
|---|---|
| Maximum Voltage | 600V |
| Current Measurement (UT201R/UT202R) | 400A |
| Current Measurement (UT202F) | 600A |
Please refer to the user manual for detailed specifications and safety instructions.
