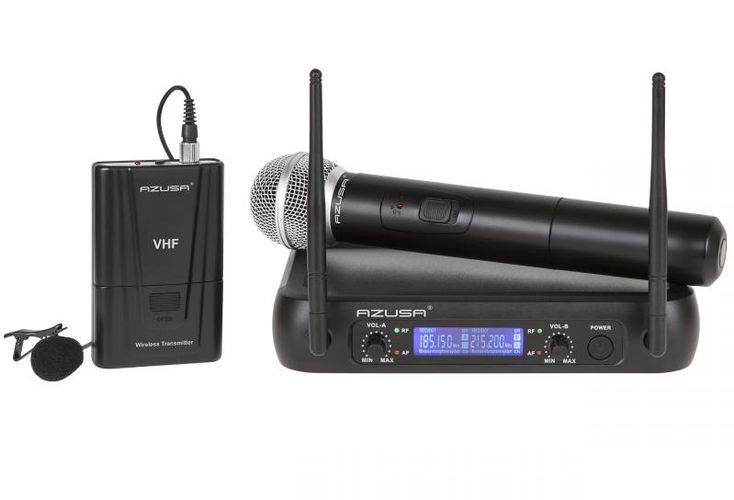

Wireless VHF Two Channel Microphone Set (Handheld & Clip) WR-358LD

Channel: Two
Microphones: 1x Handheld Microphone + 1 Clip
General:
-Carrier Frequency Range: 170-270 MHz, VHF
-Frequency Stability: +/- 0.005%
-Modulation: FM
- Maximum Transmitter Power 10mW
-Maximum Deviation: +/- 15 kHz
-Frequency Response: 40 Hz – 20 kHz
-S/N Ratio: >100 dB
-Dynamic Range: >100 dB
-T.H.D.: <0.5%
-Range: up to 50 meters
-Temperature Range: -10~50oC
Receiver:
-Reception: Quartz
Controlled Frequency Stabilization -Reception Sensitivity: S/N Ratio: 60 dB (12 dBU)
-S/N Ratio: >100 dB
-Audio Output Level: Unbalanced CHA+B:0~0.5V/5 kOhm
Unbalanced CHA&CHB: 0~0.5V/50 kOhm
-AC Adapter: 13-15 V; 500 mA
Microphone:
-RF Output Power: Max. 30 mW
-Harmonic frequency emission: More than 45 dB carrier wave
-Antenna: Built-in
-Microphone: Unidirectional
Battery: 2xAA handheld batteries; Battery clip 2xAA

WR-358LD 2-Channel VHF Microphone The WR-358LD VHF microphone is a versatile audio solution ideal for presentations, live performances, and conferences. The 2-channel system offers high-quality sound and reliable signal transmission, ensuring flexibility and ease of use. Advanced Transmission Technology The WR-358LD microphone operates in a carrier frequency range of 170 to 270 MHz, ensuring stable signal transmission thanks to FM modulation and precise frequency stabilization with an accuracy of +/- 0.005%. A frequency response of 40 Hz to 20 kHz and a signal-to-noise ratio of over 100 dB guarantee clear and crisp sound. Maximum deviation of +/- 15 kHz and low distortion (T.H.D. <0.5%) ensure high-quality transmission. A range of up to 50 meters and an operating temperature range of -10 to 50°C provide flexibility in various operating conditions. Versatile Microphone Set The set includes two microphones: one handheld and one clip-on, allowing for diverse applications. The handheld microphone features a built-in antenna and unidirectional characteristic, ensuring precise sound capture. The clip-on microphone is ideal for those who need hands-free speaking. Receiver and Transmitter Specifications The microphone receiver ensures stable signal reception thanks to quartz frequency stabilization. Reception sensitivity with a signal-to-noise ratio of 60 dB (12 dBU) and audio output level of 0~0.5 V at 5 kOhm for CHA+B channels and 0~0.5 V at 50 kOhm for both CHA&CHB channels guarantee high sound quality. The AC adapter providing 13-15 V and 500 mA supplies the necessary power for stable system operation.
