Product description

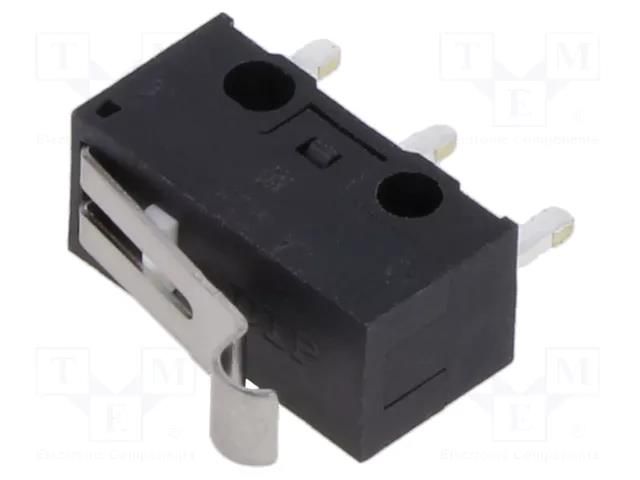

Microswitch SNAP ACTION; 1.5A/250VAC; SPDT; Rcont max: 100mΩ DIPTRONICS
Useful information
Specifications
Supplier product description
Microswitch SNAP ACTION; 1.5A/250VAC; SPDT; Rcont max: 100mΩ
Useful information
Supplier parameters
Product code
MS1-3S21HGV
Brand
DIPTRONICS
Supplier's product code
MS1-3S21HGV
Product ID
U-2981818
AC contacts rating @R
1.5A / 250V AC
Body dimensions
12.8x5.8x6.5mm
Contact material
silver alloy
Contacts configuration
SPDT
Electrical life
6000 cycles
Leads
for soldering
Manufacturer
DIPTRONICS
Manufacturer series
MS1
Max. contact resistance
:100mΩ
Mechanical durability
500000 cycles
Min. insulation resistance
0.1GΩ
Mounting
PCB
Number of positions
2
Operating Force
0.39N
Operating temperature
-25...75°C
Soldering temperature
260°C / 5 s
Stable positions number
1
Switching method
ON-(ON)
Type of switch
microswitch SNAP ACTION
