Product description

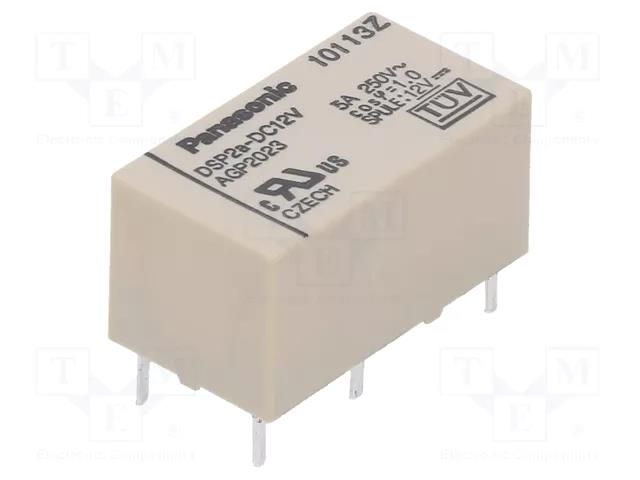

Relay: electromagnetic; DPST; Ucoil: 12VDC; Icontacts max: 5A; DSP PANASONIC
Useful information
Specifications
Supplier product description
Relay: electromagnetic; DPST; Ucoil: 12VDC; Icontacts max: 5A; DSP
Useful information
Supplier parameters
Product code
DSP2A-DC12V
Brand
PANASONIC
Supplier's product code
DSP2A-DC12V
Product ID
U-2214507
AC contacts rating @R
5A / 250V AC
Body dimensions
20.2x11x10.5mm
Coil current
25mA
Coil power consumption
300mW
Coil resistance
480Ω
Coil voltage min.
9.6V DC
Contact current max.
5A
Contact material
AgSnO<sub>2</sub> Au
Contact plating
gold-plated
Contacts configuration
DPST
Manufacturer
PANASONIC
Manufacturer series
DSP
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
miniature
Switched voltage
max. 250V AC
Type of relay
electromagnetic
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
