Product description

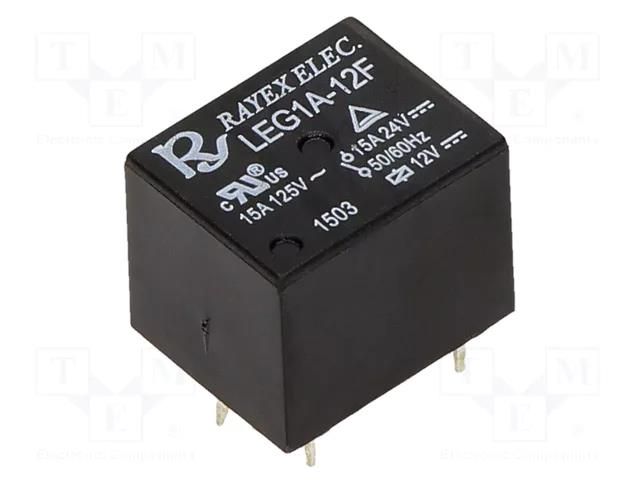

Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; Icontacts max: 15A Recoy/RAYEX ELECTRONICS
Useful information
Specifications
Supplier product description
Relay: electromagnetic; Ucoil: 12VDC; SPST-NO; Icontacts max: 15A
Useful information
Supplier parameters
Product code
LEG-1A-12F
AC contacts rating @R
15A / 120V AC
Body dimensions
19.5x15.8x15mm
Coil current
30mA
Coil power consumption
360mW
Coil resistance
400Ω
Coil voltage
12V DC
Contact current max.
15A
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
15A / 24V DC
Manufacturer
Recoy/RAYEX ELECTRONICS
Manufacturer series
LEG
Mounting
PCB
Operate time
8ms
Operating temperature
-30...85°C
Relay variant
miniature
Release time
8ms
Switched voltage
max. 100V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
Recoy/RAYEX ELECTRONICS
Supplier's product code
LEG-1A-12F
Product ID
U-235422
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
