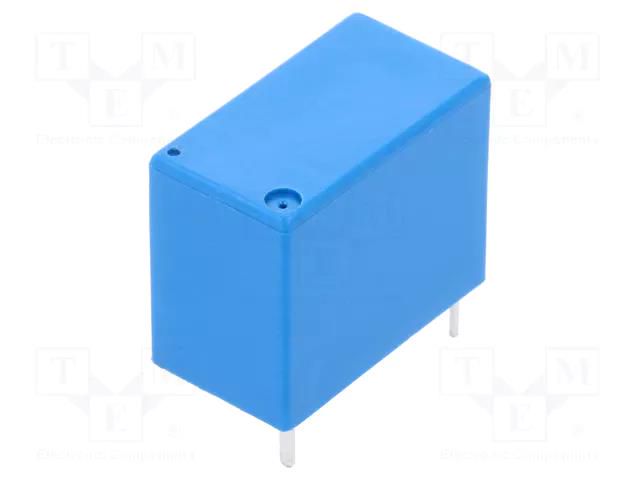

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC TE Connectivity
Product Code: OJE-SS-112HMF.F000
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC TE Connectivity
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC
Supplier parameters
Product code
OJE-SS-112HMF.F000
Brand
TE Connectivity
Supplier's product code
OJE-SS-112HMF.F000
Product ID
U-279613
AC contacts rating @R
10A / 250V AC
Body dimensions
18.2x14.7x10.2mm
Coil resistance
320Ω
Coil voltage min.
8.4V DC
Contact current max.
10A
Contact material
AgCdO
Contacts configuration
SPST-NO
DC contacts rating @R
10A / 30V DC
Height
14.7mm
Manufacturer
TE Connectivity
Manufacturer series
OJE
Mounting
PCB
Operate time
10ms
Operating temperature
-30...70°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
4ms
Switched voltage
max. 30V DC
Terminal pitch
2.54mm
Type of relay
electromagnetic
