Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 3A/250VAC; PCN TE Connectivity
Product Code: PCN-105D3MHZ.001B

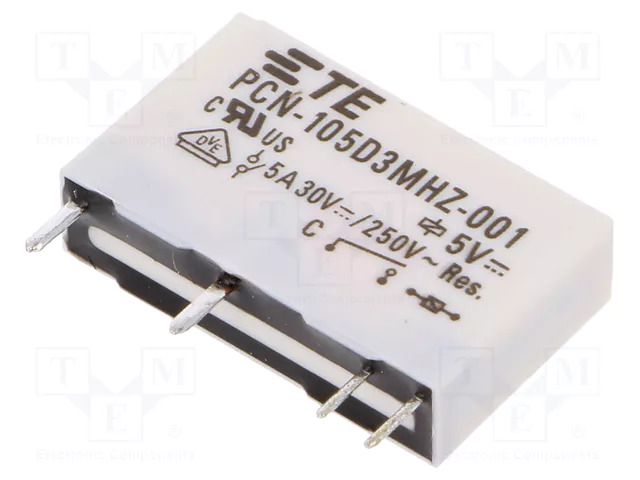

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 3A/250VAC; PCN TE Connectivity
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 3A/250VAC; PCN
Supplier parameters
Product code
PCN-105D3MHZ.001B
AC contacts rating @R
3A / 250V AC
Body dimensions
20x12.5x5mm
Coil power consumption
120mW
Coil resistance
208Ω
Contact current max.
5A
Contact material
AgNi
Contacts configuration
SPST-NO
DC contacts rating @R
5A / 30V DC
Manufacturer
TE Connectivity
Manufacturer series
PCN
Mounting
PCB
Operating temperature
-40...85°C
Rated coil voltage
5V DC
Relay variant
interface
Switched voltage
max. 125V DC
Terminal pitch
7.62mm
Type of relay
electromagnetic
Brand
TE Connectivity
Supplier's product code
PCN-105D3MHZ.001B
Product ID
U-285902
