Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A TE Connectivity
Product Code: RTD14012F

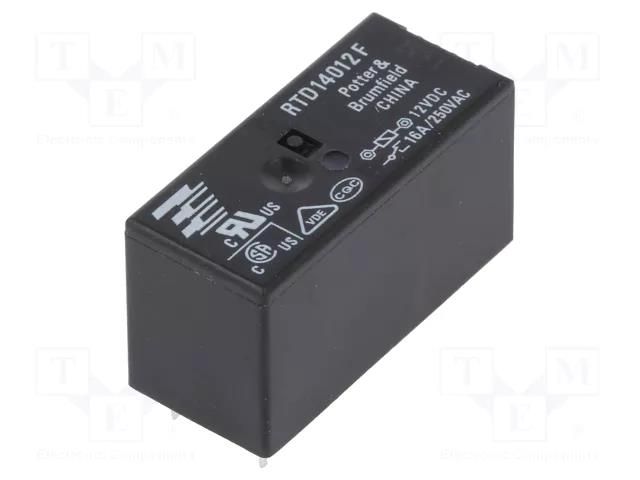

The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A TE Connectivity
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A
Supplier parameters
Product code
RTD14012F
Product ID
U-315181
AC contacts rating @R
16A / 250V AC
Body dimensions
29x15.7x12.7mm
Coil power consumption
400mW
Coil resistance
360Ω
Coil voltage min.
8.4V DC
Contact current max.
16A
Contact material
AgNi
Contacts configuration
SPDT
DC contacts rating @R
16A / 24V DC
Height
15.7mm
IP rating
IP67
Manufacturer
TE Connectivity
Manufacturer series
RT1
Max surge current
25A
Mechanical durability
30000000 cycles
Mounting
THT
Number of pins
8
Operating temperature
-40...85°C
Rated coil voltage
12V DC
Relay variant
miniature
Switched voltage
max. 300V DC
Switching capacity
3kVA
Terminal pitch
5mm
Type of relay
electromagnetic
Brand
TE Connectivity
Supplier's product code
RTD14012F
