Product description

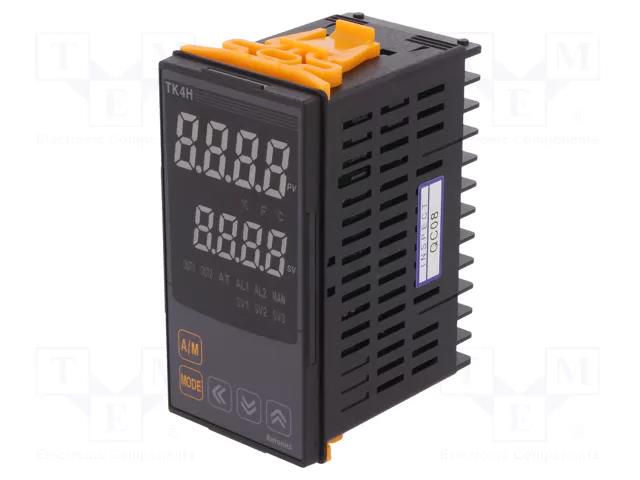

Module: regulator; temperature; SPST-NO; OUT 2: transfer,SSR; TK4H AUTONICS
Useful information
Specifications
Supplier product description
Module: regulator; temperature; SPST-NO; OUT 2: transfer,SSR; TK4H
Useful information
Supplier parameters
Product code
TK4H-14RC
Brand
AUTONICS
Supplier's product code
TK4H-14RC
Product ID
U-354498
Body dimensions
48x96x70.5mm
Controlled parameter
temperature
Controlled parameter range
-1999...9999
Display 2 height
12mm
Display height 1
14.6mm
Input 1 properties
thermocouple
IP rating
IP65
Kind of display used
LED x2
Kind of input 1
4...20mA
Kind of output 1
SPST-NO
Kind of output 2
SSR
Kind of output 3
SPST-NO
Kind of temperature sensor
Pt100
Manufacturer
AUTONICS
Manufacturer series
TK4H
Mounting
on panel
Mounting hole diameter
45x92mm
Operating temperature
-10...50°C
Output 1 electrical parameters
250V AC / 3A
Output 2 electrical parameters
4...20mA
Output 3 electrical parameters
250V AC / 3A
Regulation for output 1
ON-OFF
Supply voltage
100...240V AC
The programming method
foil keypad
Type of module
regulator
