Product description

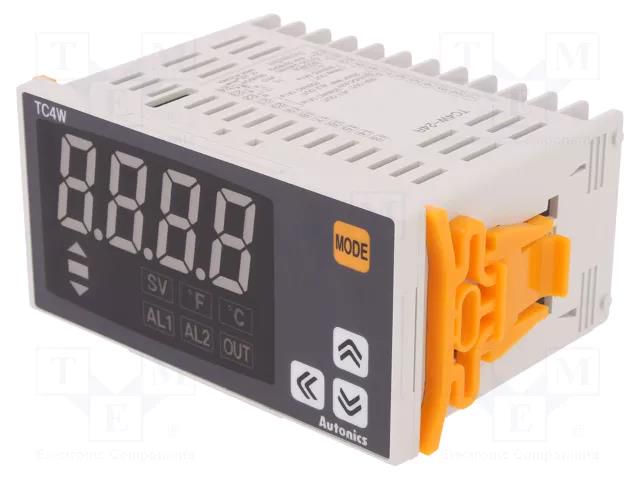

Module: regulator; temperature; SPST-NO; OUT 2: SSR; OUT 3: alarm AUTONICS
Useful information
Specifications
Supplier product description
Module: regulator; temperature; SPST-NO; OUT 2: SSR; OUT 3: alarm
Useful information
Supplier parameters
Product code
TC4W-24R
Supplier's product code
TC4W-24R
Product ID
U-347142
Additional functions
LED status indicator
Body dimensions
96x48x70.5mm
Controlled parameter
temperature
Controlled parameter range
-1999...9999
Display height 1
20mm
Input 1 properties
thermocouple
Kind of display used
LED
Kind of output 1
SPST-NO
Kind of output 2
SSR
Kind of output 3
alarm
Kind of output 4
alarm
Kind of temperature sensor
Pt100
Manufacturer
AUTONICS
Manufacturer series
TC4W
Mounting
on panel
Mounting hole diameter
92x45mm
Operating temperature
-10...50°C
Output 1 electrical parameters
250V AC / 3A
Output 2 electrical parameters
12V DC / 20mA
Output 3 electrical parameters
250V AC / 1A
Output 4 electrical parameters
250V AC / 1A
Regulation for output 1
ON-OFF
Supply voltage
100...240V AC
The programming method
foil keypad
Type of module
regulator
Brand
AUTONICS
