Product description

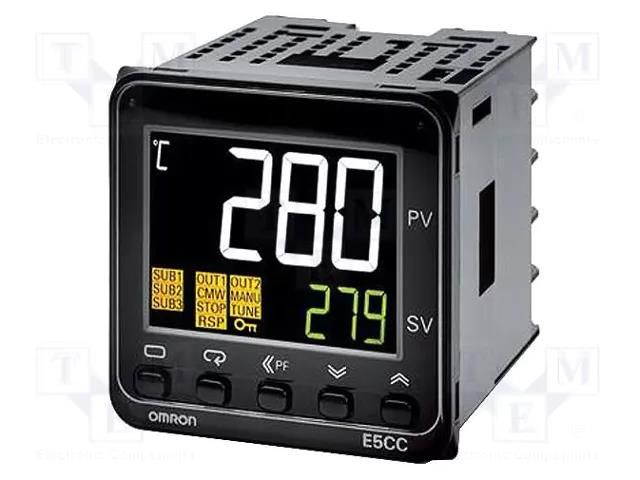

Module: regulator; temperature; SSR; IN 2: 4 event inputs; E5CC OMRON
Useful information
Specifications
Supplier product description
Module: regulator; temperature; SSR; IN 2: 4 event inputs; E5CC
Useful information
Supplier parameters
Product code
E5CC-QX3A5M-005
Brand
OMRON
Supplier's product code
E5CC-QX3A5M-005
Product ID
U-174949
Additional functions
heating or cooling control
Auxiliary outputs
SPST-NO x3
Body dimensions
48x48x77.1mm
Controlled parameter
temperature
Controlled parameter range
-1999...9999
Display 2 height
7.1mm
Display height 1
15.2mm
Input 1 properties
thermocouple
IP rating
IP66 (from the front)
Kind of display used
LCD
Kind of input 2
4 event inputs
Kind of output 1
SSR
Kind of temperature sensor
Pt100
Leads
screw terminals
Manufacturer
OMRON
Manufacturer series
E5CC
Mounting
on panel
Mounting hole diameter
45x45mm
Operating temperature
-10...55°C
Regulation for output 1
ON-OFF
Supply voltage
100...240V AC
The programming method
keypad
Type of module
regulator
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
