Features of UT612 LCR Meter
Multimeter LCR meter UT612 UNI-T diode, tranzistor, continuity buzzer UNI-T
Product Code: UT612
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description

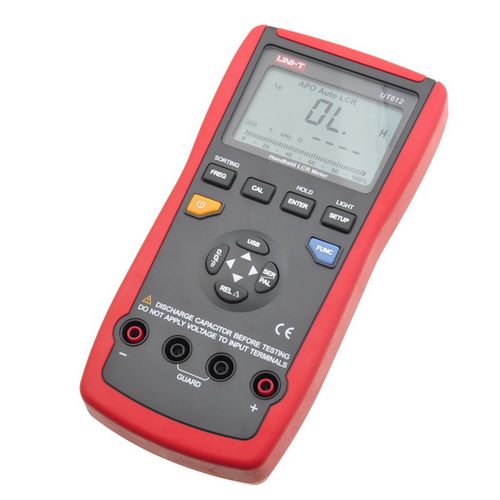

UT612 LCR Meter
UT612 LCR meter is used to measure inductance, capacitance and resistance. Advanced features include series/parallel measurement modes, quality factor/loss/phase angle measurements, equivalent/DC resistance measurements and 5 selectable frequencies in AC mode. UT612 can be used in production lines, component inspection and electronic maintenance.
Certifications: CE, UKCA
● Auto power off
● Data hold
● Relative mode
● USB interface
● LCD backlight
● Deviation ratio measurement
● Comparison function
● Calibration funtion
● Output impedance: 120Ω
● Auto LCR check and measurement
● Low battery indication: ≤6.8V
Specifications of UT612 LCR Meter
|
Specifications |
Range |
UT612 |
|
Inductance (H) |
20uH~2000H |
±(0.5%+5) |
|
Capacitance (F) |
200pF~20mF |
±(0.5%+5) |
|
Resistance (Ω) |
20Ω~200MΩ |
±(0.3%+5) |
|
Test frequency (Hz) |
100Hz/120Hz/1kHz/10kHz/100kHz |
√ |
|
Operating voltage |
0.6Vrms |
√ |
|
Test parameters |
L/C/R/DCR/Q/D/θ/ESR |
√ |
|
Features |
||
|
Display count |
20000 |
|
|
D/Q display count |
2000 |
|
|
D/Q resolution |
0.001 |
√ |
|
Auto range |
√ |
|
|
Test frequency real-time display |
√ |
|
|
Measurement mode |
Series/Parallel |
√ |
|
Auto power off |
√ |
|
|
Low battery indication |
≤6.8V |
√ |
|
Data hold |
√ |
|
|
Relative mode |
√ |
|
|
USB interface |
√ |
|
|
USB interface/PC data records |
60000 |
|
|
LCD backlight |
√ |
|
|
Analog bar graph |
26 |
|
|
Deviation ratio measurement |
√ |
|
|
Comparison function |
√ |
|
|
Calibration function |
√ |
|
|
Output impedance |
120Ω |
√ |
|
Auto LCR check and measurement |
√ |
|
|
General Characteristics |
||
|
Power |
9V battery (6F22) or USB |
|
|
Display |
40mm x 63mm |
|
|
Product color |
Red and grey |
|
|
Product net weight |
374g |
|
|
Product size |
96mm x 193mm x 47mm |
|
|
Standard accessories |
Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD |
|
|
Standard individual packing |
Gift box, English manual |
|
|
Standard quantity per carton |
10pcs |
|
|
Standard carton measurement |
370mm x 305mm x 475mm (0.097 CBM per standard carton) |
|
|
Standard carton gross weight |
13.2kg |
|
|
Optional accessory |
USB power adaptor |
|
Useful information
Specifications
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence
Product description generated by artificial intelligence
UNI-T UT612: Precision LCR Meter and Multimeter
The UNI-T UT612 is a versatile digital multimeter and LCR meter designed for accurate and efficient measurements of various electronic components. This device combines multiple functions into one compact unit, making it an ideal tool for professionals and hobbyists alike.
Key Features and Functions
- LCR Measurement: Measures inductance (L), capacitance (C), and resistance (R) with high precision.
- Multiple Frequencies: Offers a range of testing frequencies for comprehensive analysis.
- Dual Display: Features a main display and a secondary display for clear and simultaneous readings of primary and secondary parameters.
- Measurement Modes: Supports both series and parallel measurement modes for optimal accuracy depending on the component being tested.
- Additional Measurements: Provides measurements of DC resistance (DCR), quality factor (Q), dissipation factor (D), and phase angle (θ).
- Calibration: Includes open and short calibration functions to minimize errors caused by test leads and stray impedance.
- PC Communication: Connects to a PC via USB for data logging and analysis.
- User-Friendly Interface: Intuitive operation with clearly labeled buttons and a user-friendly display.
Applications
The UNI-T UT612 is suitable for a wide range of applications, including:
- Component testing in electronics manufacturing and repair.
- Research and development in electronics engineering.
- Educational purposes in electronics training.
- Hobbyist projects requiring precise component measurements.
Why Choose the UNI-T UT612?
The UNI-T UT612 stands out due to its combination of accuracy, versatility, and ease of use. Its multiple measurement capabilities, various frequency options, and PC connectivity make it a powerful and efficient tool for any electronics professional or enthusiast. The built-in calibration functions ensure reliable and precise results.
