Product description

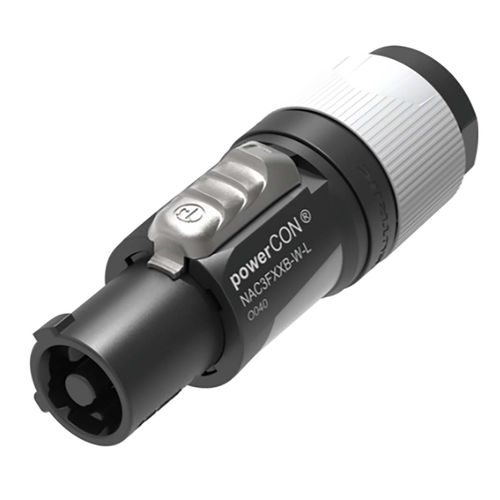

NAC3FXXB-W-L locking AC mains cable connector
Useful information
Specifications
SKU
U-3982651
Barcodes
7613187017728
Product code
NTR-NAC3FXXBWL
Supplier product description
Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 10 - 16 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON
XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Useful information
Supplier parameters
Product code
NTR-NAC3FXXBWL
Product ID
U-3982651
Assembly method
Twist-on
Cable input diameter
16 mm
Colour
Black;Grey
Connector design
Straight with Lock
Connector housing material
ABS
Connector plating
Nickel Plated
Connector type
Power Plug
Current
20 A
Gender of contacts
Female
IP rating
IP20
Material
Metal
Number of products in package
1 pcs
Packaging
Polybag
SmartLife
No
Temperature range
-33 - 80 Ā°C
Supplier's product code
NTR-NAC3FXXBWL
