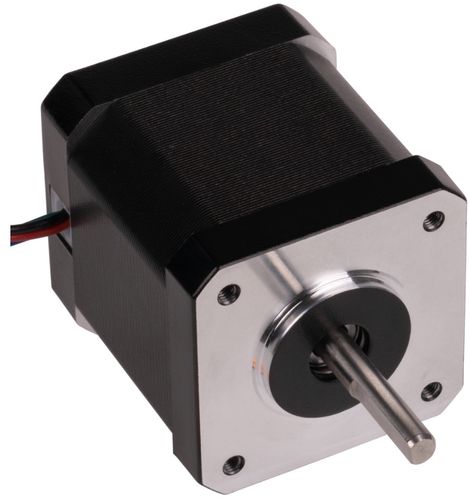

NEMA 17 [42SHD4425-24BH] Stepper Motor Step Angle: 1.8°, 3.6V 0.59Nm JOY-IT

NEMA 17 series are high torque stepper motors that can reach speeds of up to 3000 rpm.

This stepper motor can be optimally used for tasks in the areas of Automation, CNC (f. e. engraving lasers, 3D printers, milling machines, etc.), or robotic.

The compact design and the low weight predestine this stepper motor for projects with low building space or weight capacity.

Shaft dimensions Ø 5 x 22 mm (4mm flat spot)
Connection 4 Cables
Holding torque 0.59 Nm
Rated voltage 3.6 V
Rated current 2.0 A
Step angle 1.8 ° ±5 %
Number of Phases 2
Phase resistance 1.8 Ω
Phase inductivity 3.0 mH
Isolation resistance Min. 100 MΩ @500 V DC
Isolation class B (130°C)
Rotational inertia 82 g·cm²
Detent torque 0.02 Nm
permitted operating temperature -10 to 50 °C

Our NEMA 17 series are high torque stepper motors that can reach speeds of up to 3000 rpm. This stepper motor can be optimally used for tasks in the areas of Automation, CNC (f. e. engraving lasers, 3D printers, milling machines, etc.), or robotic. The compact design and the low weight predestine this stepper motor for projects with low building space or weight capacity.

Technical data:

Shaft dimensions: Ø 5 x 22 mm (4mm flat spot)

Connection: 4 Cables

Holding torque: 0.59 Nm

Rated voltage: 3.6 V

Rated current: 2.0 A

Step angle: 1.8 ° ±5 %

Number of Phases: 2

Phase resistance: 1.8 Ω

Phase inductivity: 3.0 mH

Isolation resistance: Min. 100 MΩ @500 V DC

Isolation class: B (130°C)

Rotational inertia: 82 g·cm²

Detent torque: 0.02 Nm

Permitted operating temperature: -10 to 50 °C
