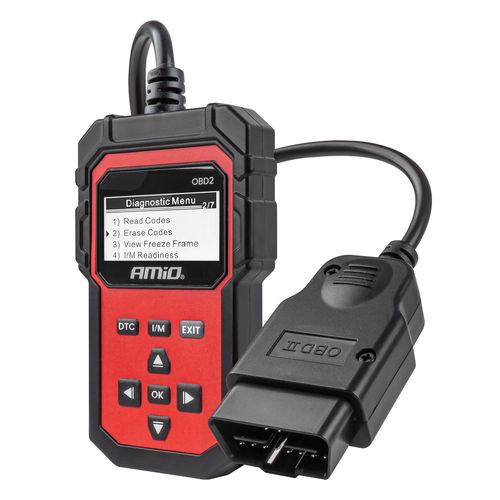

OBD2 diagnostic scanner AMIO-04730, AMiO

The professional AMiO OBD2 diagnostic interface enables quick and accurate diagnosis of vehicles with OBD2 installation. The device supports all popular communication protocols, making it an ideal tool for workshops, mobile services and individual users who need a reliable diagnostic tool.

The backlit display with a resolution of 128 × 64 px ensures that diagnostic data is legible in all lighting conditions. Power is supplied directly from the vehicle battery (8–15 V), eliminating the need for additional power sources.

Supported protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11 bit ID, 500 Kbaud)
• ISO15765-4 CAN (29 bit ID, 500 Kbaud)
• ISO15765-4 CAN (11 bit ID, 250 Kbaud)
• ISO15765-4 CAN (29-bit ID, 250 Kbaud)

Technical specifications:

• Display: backlit, 128 × 64 px
• Operating temperature: 0–60 °C (32–140 °F)
• Storage temperature: −20–70 °C (−4–158 °F)
• Operating voltage: 8–15 V (from vehicle battery)
• Dimensions: 155 × 85 × 25 mm

Advantages:

• Wide compatibility with OBD2 protocols
• Backlit display for good readability
• Robust and lightweight design, easy to store and transport
• Powered directly from the vehicle – no additional power sources required
• Reliable tool for workshops and mobile services
