Product description

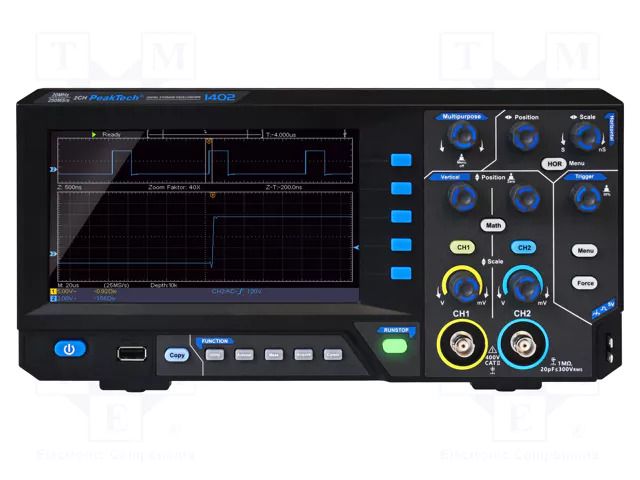

Oscilloscope: digital; DSO; Ch: 2; 20MHz; 250Msps; 10kpts; automatic PEAKTECH
Useful information
Specifications
Supplier product description
Oscilloscope: digital; DSO; Ch: 2; 20MHz; 250Msps; 10kpts; automatic
Useful information
Supplier parameters
Product code
PKT-P1402
Supplier's product code
PKT-P1402
Product ID
U-2545415
Band
20MHz
Body dimensions
301x152x70mm
Connectors for the country
Europe
Display resolution
800x480
Horizontal accuracy
±3%
Input coupling
AC, DC, GND
Input impedance
1MΩ/20pF
Input sensitivity
5mV/div...5V/div
Interface
USB
Kind of display used
LCD TFT 7"
Kind of oscilloscope
DSO
Manufacturer
PEAKTECH
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
10kpts
Number of channels
2
Operating temperature
0...40°C
Power consumption
15W
Rise time
≤17.5ns
Sampling
250Msps
Software
included
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
5n...1ks/div
Type of oscilloscope
digital
Trigger
video signal
Trigger coupling
DC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
Brand
PEAKTECH
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: .
